Front Bumper Shutter Replacement (With VT1)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

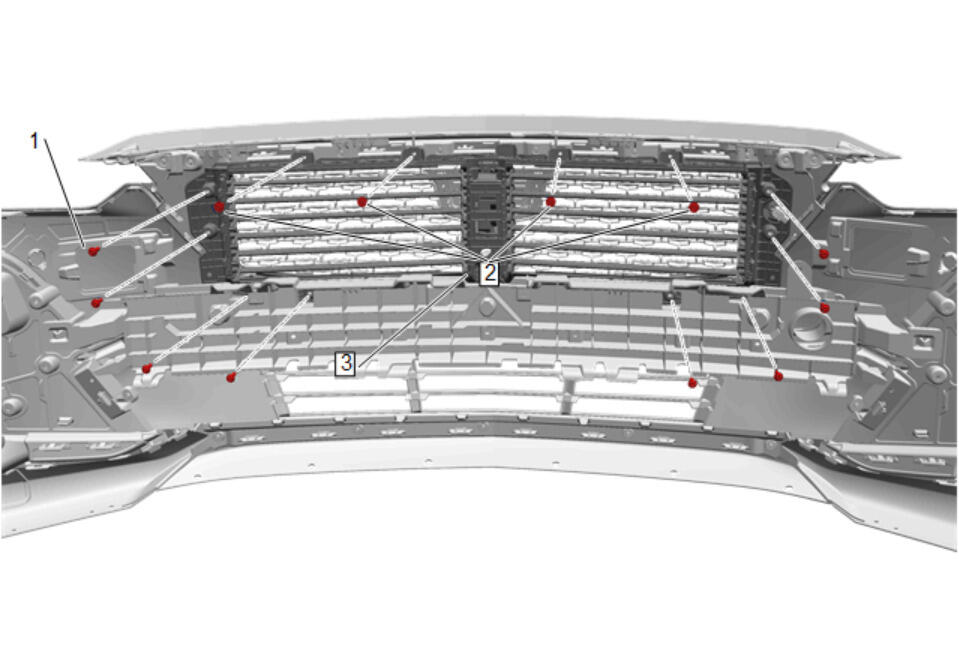

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement (without Blackwing) Front Bumper Fascia Replacement (with Blackwing) Reposition the wiring harness.
1	Front Bumper Shutter Bolt [8x] CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Front Bumper Shutter Bolt- Upper [4x] Tighten 2.5 N.m (22 lb in)
3	Front Bumper Shutter Frame Procedure Pull the front bumper shutter Frame up and out from behind the front bumper fascia absorber. Disconnect the electrical connector. Transfer components as necessary.
