Front Bumper Lower Fascia Replacement (without Blackwing)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

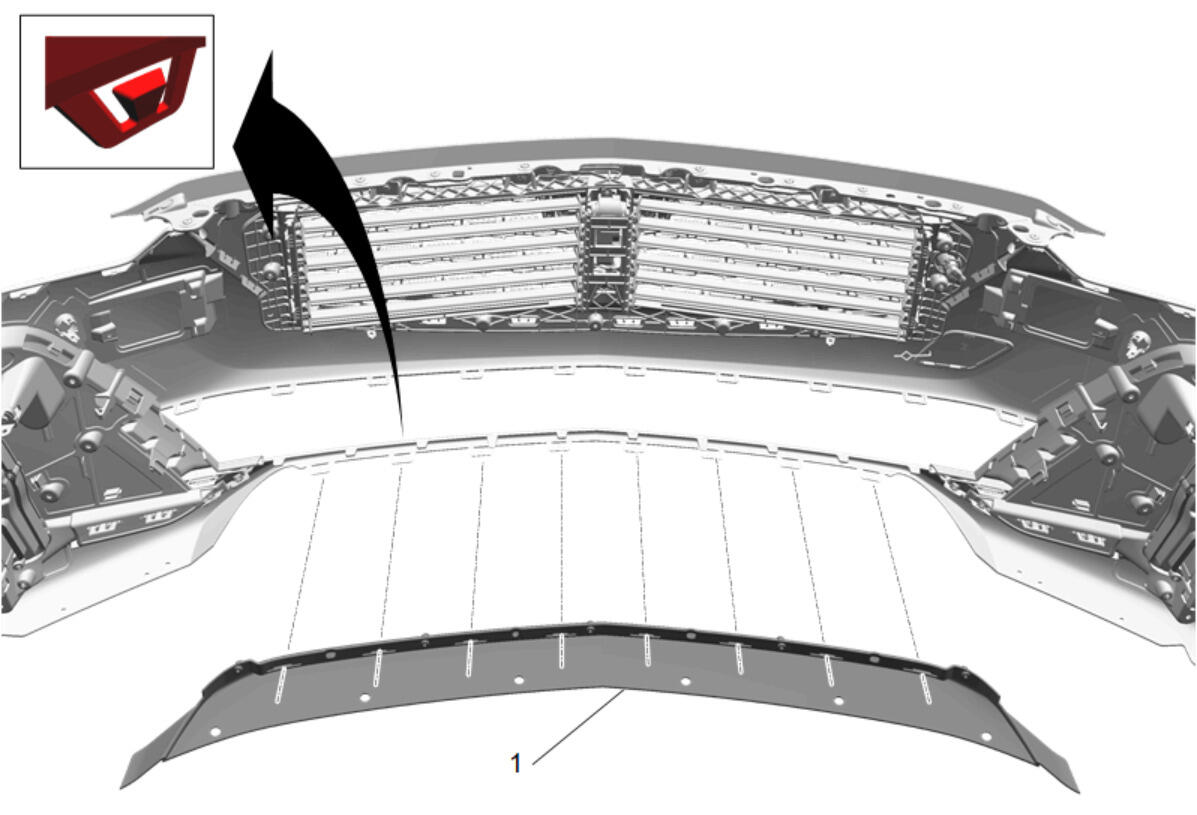

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Lower Grille Replacement
1	Front Bumper Lower Fascia Procedure Place the front bumper fascia down on a clean protected surface. Carefully depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.

Callout

Component Name

Preliminary Procedure
Front Lower Grille Replacement

Front Bumper Lower Fascia

Procedure

Place the front bumper fascia down on a clean protected surface.
Carefully depress the tabs one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the fascia.
