Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Support Brace (2) - Remove - Front Bumper Fascia Support Brace Replacement (Without Radar) Front Bumper Fascia Support Brace Replacement (With Radar)
Courtesy of GENERAL MOTORS COMPANY

Intake Air Duct Retainer (1) - Remove [2x]
Remove the 4 wire harness retainers from the front bumper impact bar.
Courtesy of GENERAL MOTORS COMPANY

Horn (2) - Remove - Horn Replacement
Courtesy of GENERAL MOTORS COMPANY

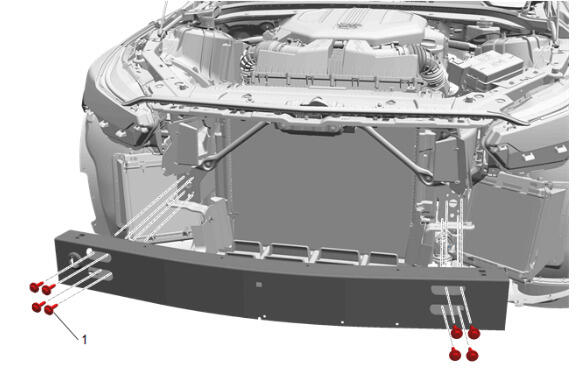

Front Bumper Impact Bar Bolt (1) - Remove [8x]
Courtesy of GENERAL MOTORS COMPANY

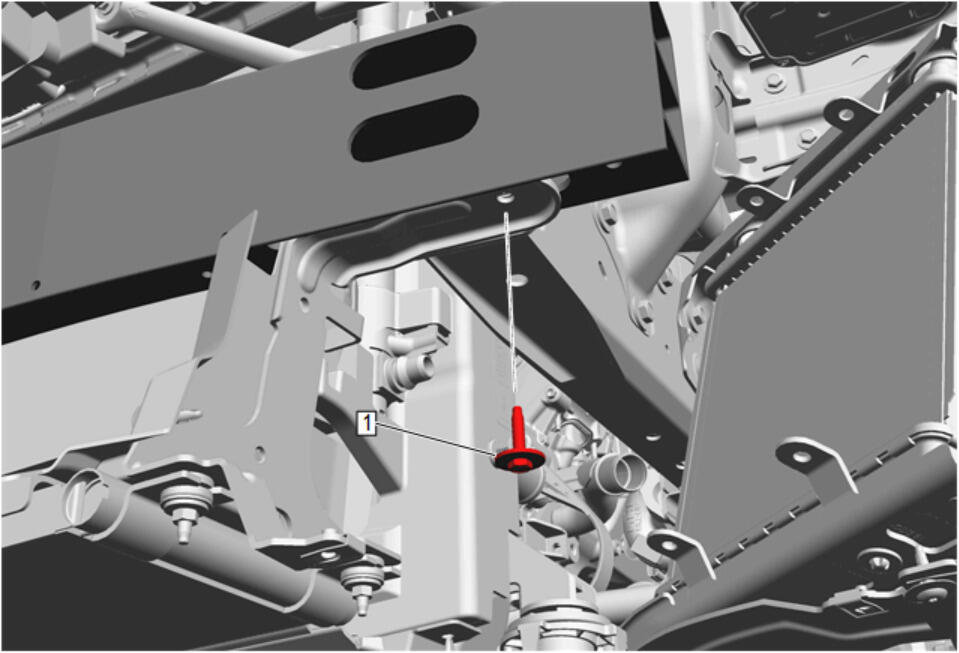

Remove the 2 right and left side transmission fluid auxiliary cooler bracket bolt (1).
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Impact Bar (1) - Remove
