Front Bumper Fascia Spacer Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

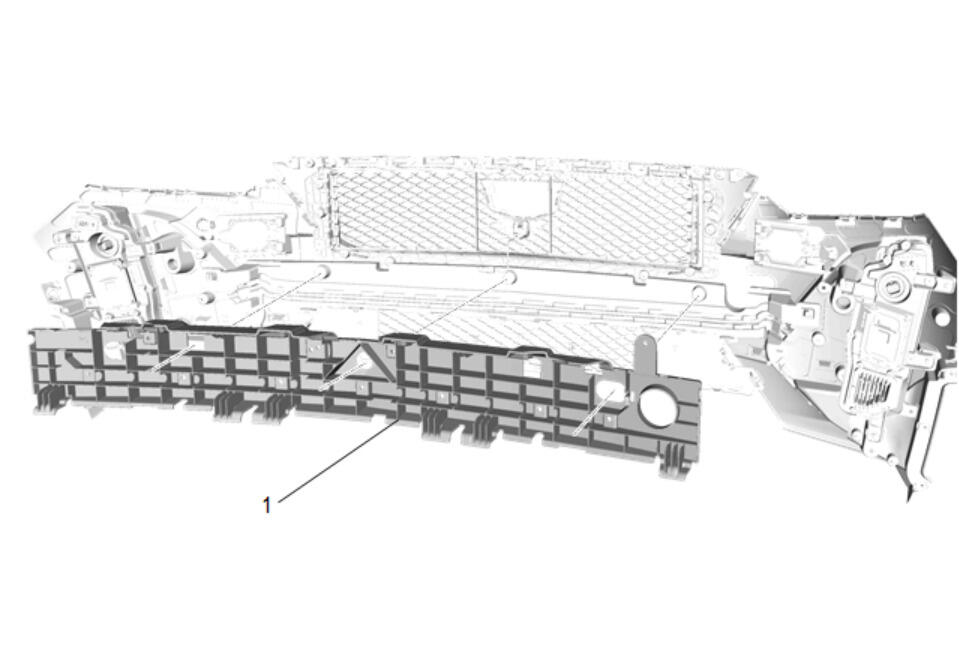

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement (without Blackwing) Front Bumper Fascia Replacement (with Blackwing) Reposition the wiring harness.
1	Front Bumper Fascia Spacer Procedure Using light outward pressure to over come the interference fit, remove the front bumper fascia spacer from the fascia.

Callout

Component Name

Preliminary Procedures

Front Bumper Fascia Replacement (without Blackwing) Front Bumper Fascia Replacement (with Blackwing)
Reposition the wiring harness.

Front Bumper Fascia Spacer
Procedure
Using light outward pressure to over come the interference fit, remove the front bumper fascia spacer from the fascia.
