Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, install the front bumper fascia (1).
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

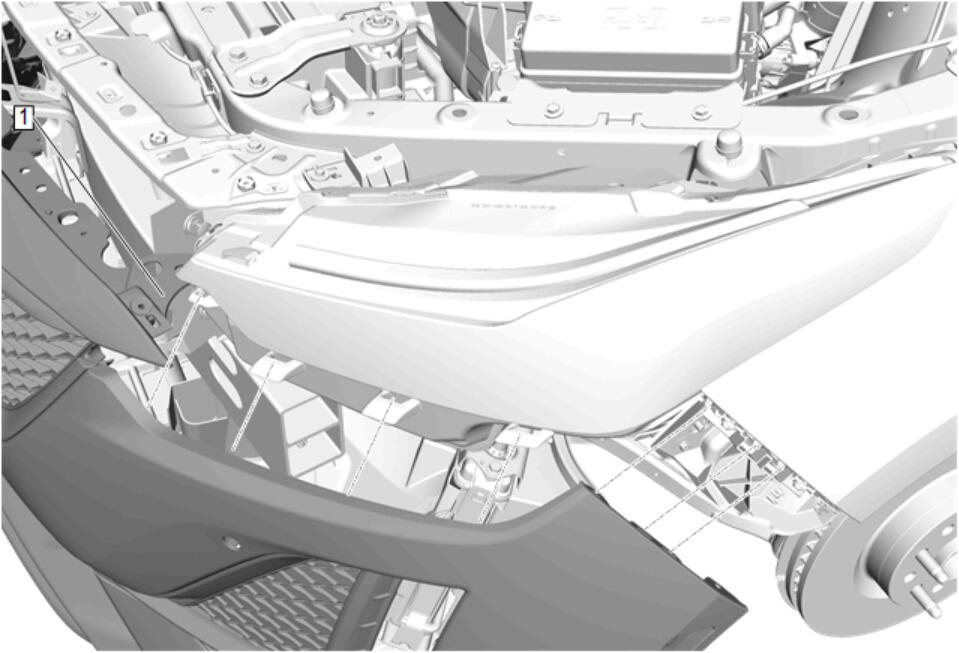

Install the front bumper fascia (1) to the headlamp and front bumper fascia guide on both sides.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

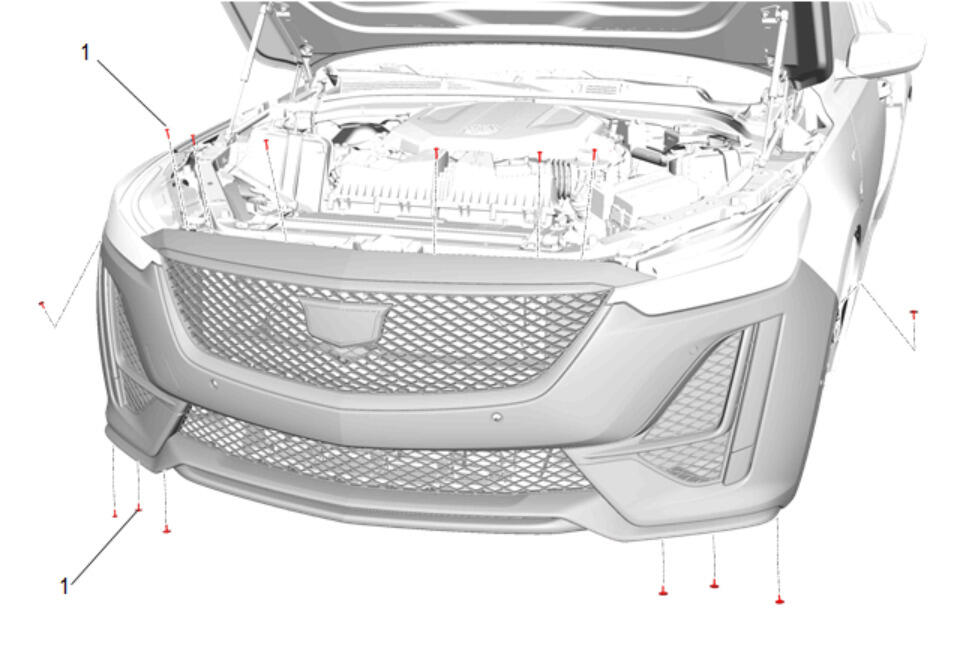

Front Bumper Fascia Bolt (1) - Install and tighten [14x] 2.5 N.m (22 lb in).
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Center Air Deflector (1) - Install - Front Bumper Fascia Center Air Deflector Replacement
Install the left side and right side front wheelhouse liners bolts. Front Wheelhouse Liner Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Front Sight Shield (2) - Install - Front Compartment Front Sight Shield Replacement
{ If equipped } Connect the engine coolant heater wiring extension harness connector to the license plate bracket.
