Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Front Compartment Front Sight Shield (2) - Remove - Front Compartment Front Sight Shield Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Air Deflector Bolt (1) - Remove [4x]
Front Bumper Fascia Air Deflector (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

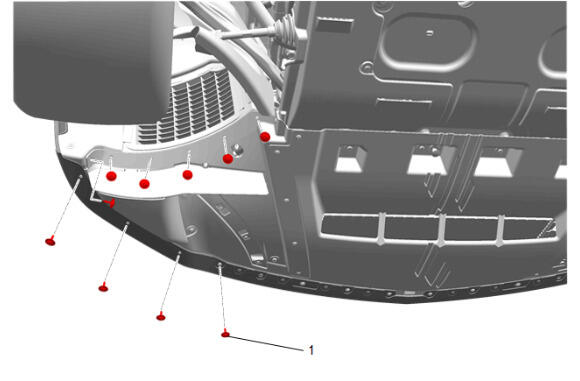

Front Wheelhouse Liner Bolt- Left Side and Right Side (1) - Remove [20x]
Courtesy of GENERAL MOTORS COMPANY

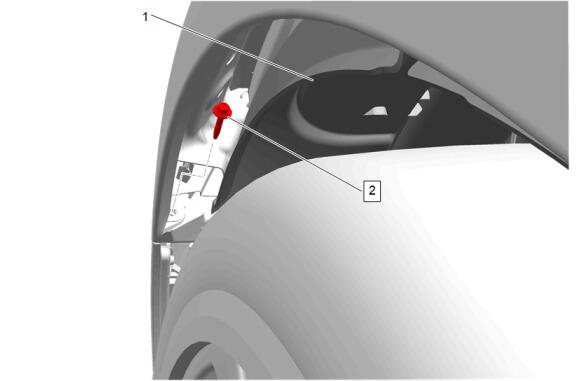

Front Wheelhouse Liner- Left Side and Right Side (1) Reposition [2x]
Front Bumper Fascia Bolt- Left Side and Right Side (1) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

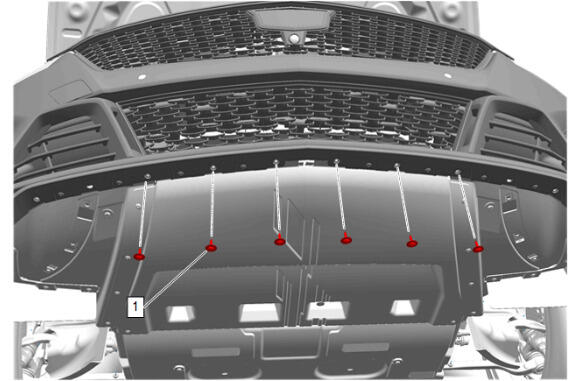

Front Bumper Fascia Center Air Deflector Bolt (1) - Remove - [6x]
Courtesy of GENERAL MOTORS COMPANY

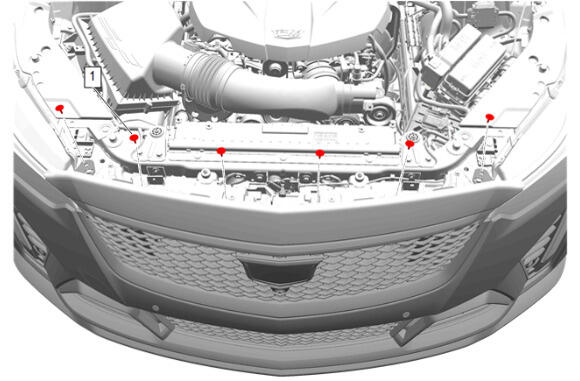

Front Bumper Fascia Bolt (1) - Remove [6x]
Courtesy of GENERAL MOTORS COMPANY

Carefully push a small nylon wedge between the fascia (1) and the fascia guide on left and right side. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia.
Release the tabs on the fascia (1) from the left and right side headlamps.
Courtesy of GENERAL MOTORS COMPANY

With the aid of an assistant, remove the fascia. (1)
Disconnect all electrical connectors.
