Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

Front Tire Front Air Deflector (1) - Remove - Front Tire Front Air Deflector Replacement (with Blackwing)
Courtesy of GENERAL MOTORS COMPANY

Front Bumper Fascia Bolt (1) - Remove [5x]
Front Bumper Fascia Lower Stiffener Bolt (2) - Remove
Front Bumper Fascia Air Deflector Bolt (3) - Remove [5x]
Courtesy of GENERAL MOTORS COMPANY

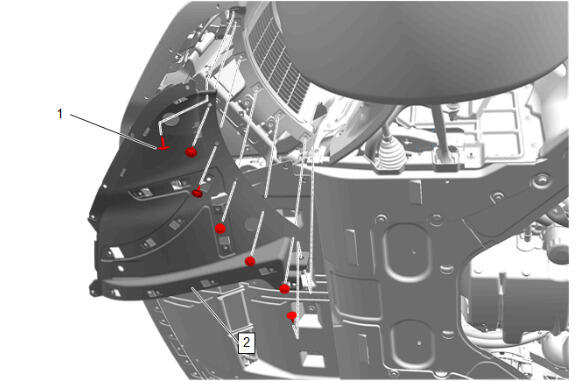

Front Bumper Fascia Air Deflector Bolt (1) - Remove [7x]
Front Bumper Fascia Lower Reinforcement (2) - Remove
