Exhaust Tail Pipe Heat Sleeve Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

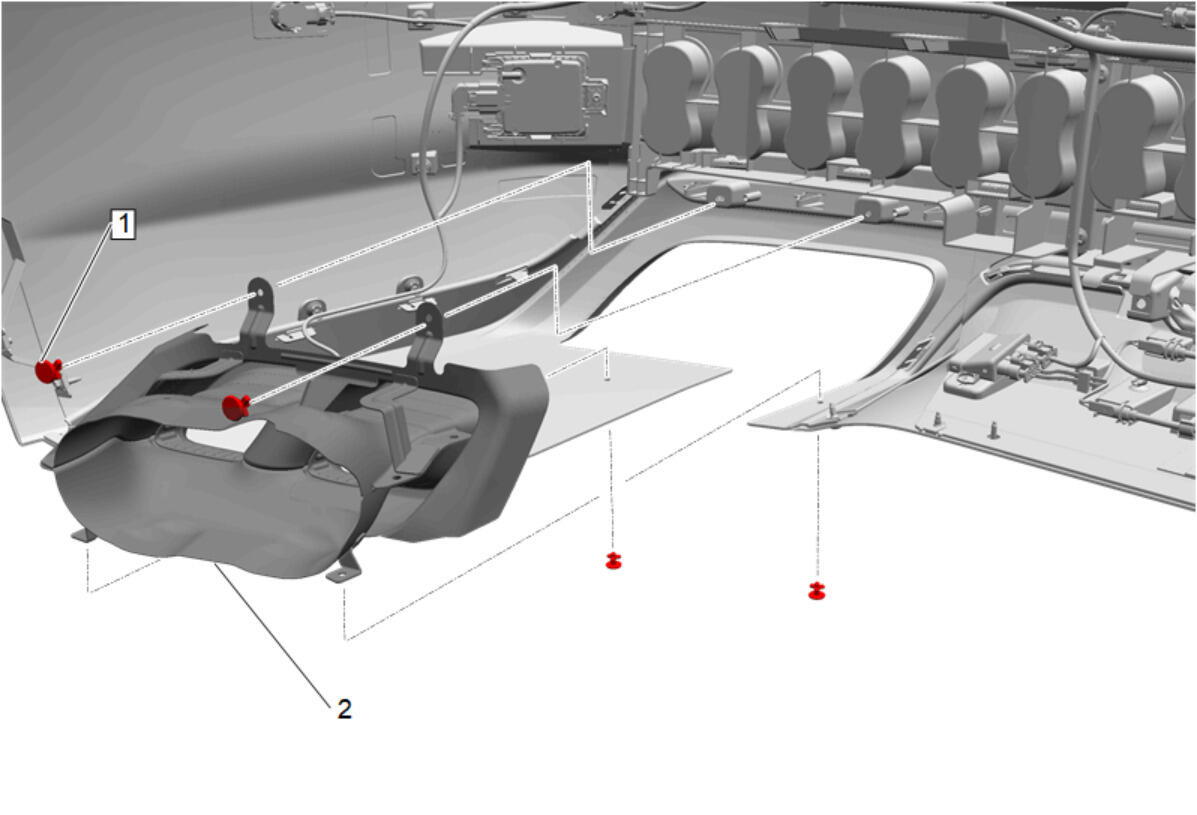

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Rear Bumper Fascia Removal and Installation (without Blackwing) Rear Bumper Fascia Removal and Installation (with Blackwing) Refer to Eye Protection Warning . |
|
| 1 | Exhaust Tail Pipe Heat Sleeve Rivet [4x] Procedure Drill out the rivets. |
| 2 | Exhaust Tail Pipe Heat Sleeve |
