Front Side Door Pull Cup Illumination Lamp Replacement - Driver Side

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Side Door Trim Replacement - Driver Side

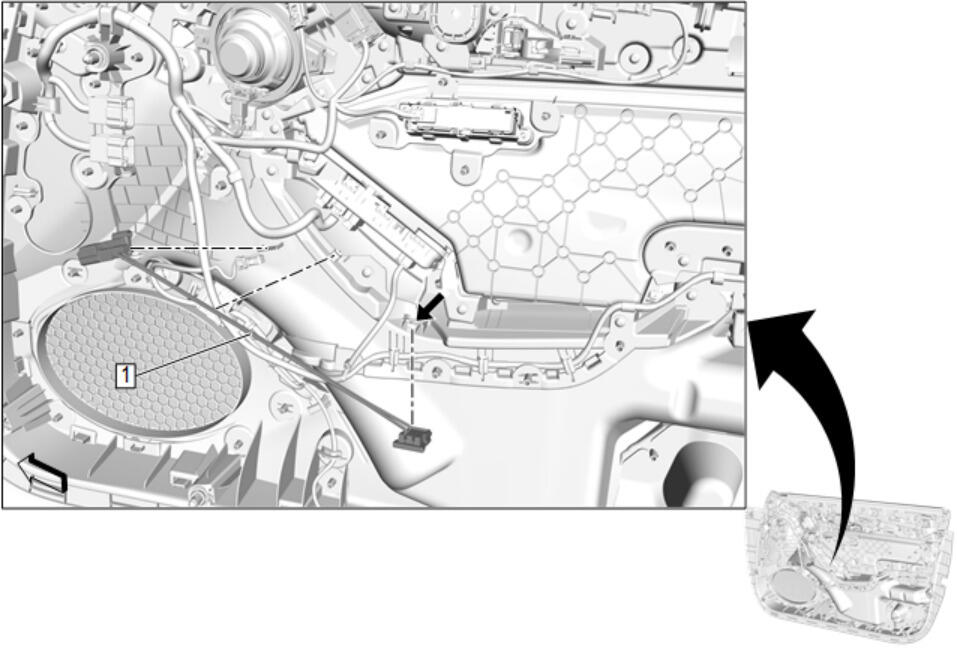

1	Front Side Door Pull Cup Illumination Lamp Procedure Reposition the front side door trim panel insulator. Note the location and routing of the wiring harness to ensure proper reinstallation. Disconnect the electrical connector. Release the lamp from the trim panel retaining tabs.

Callout

Component Name

Preliminary Procedure
Front Side Door Trim Replacement - Driver Side

Front Side Door Pull Cup Illumination Lamp

Procedure

Reposition the front side door trim panel insulator.
Note the location and routing of the wiring harness to ensure proper reinstallation.
Disconnect the electrical connector.
Release the lamp from the trim panel retaining tabs.
