Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

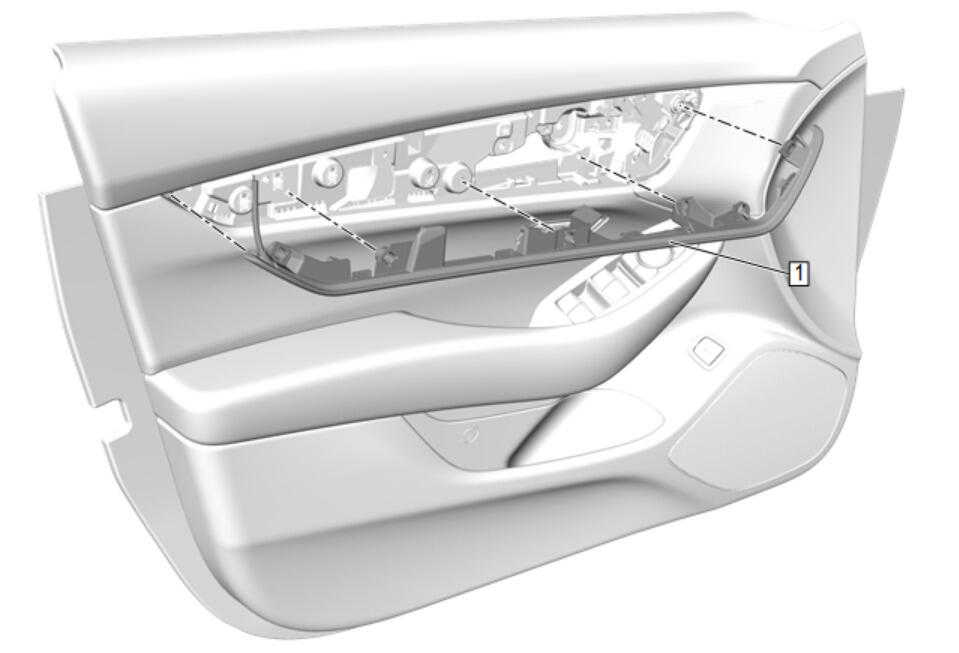

Front Side Door Trim Panel Applique (2) - Remove - Front Side Door Trim Panel Applique Replacement
Front Side Door Inside Handle - Remove - Front Side Door Inside Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

Remove the front side door armrest applique (1) from the front side door trim.
Courtesy of GENERAL MOTORS COMPANY

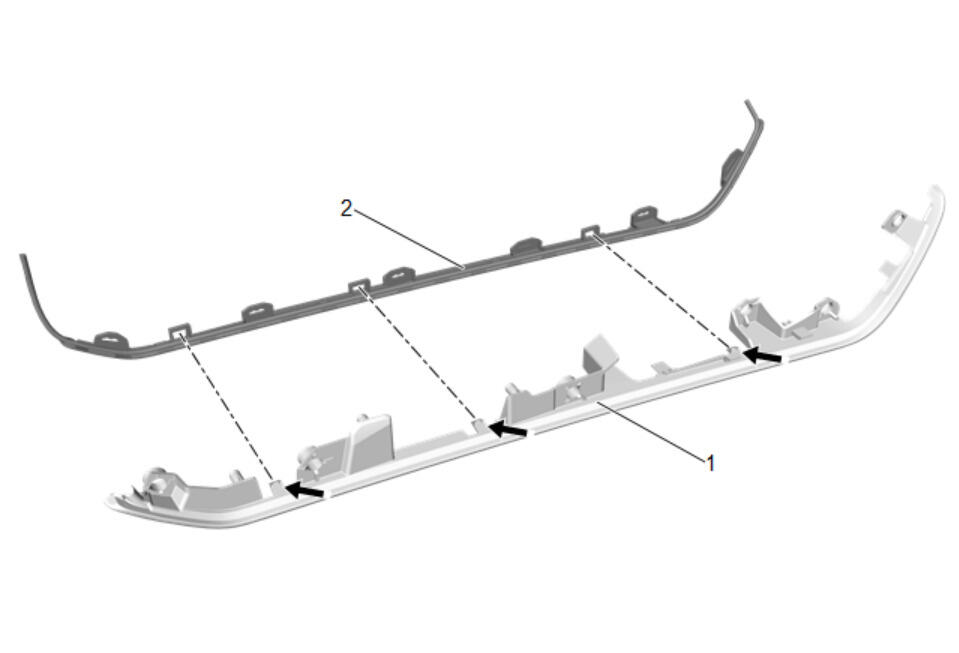

Release the retaining tabs.
Remove the front side door light conductor lamp (2) from the front side door armrest applique (1).
Transfer components as necessary.
