Front Side Door Courtesy Lamp Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

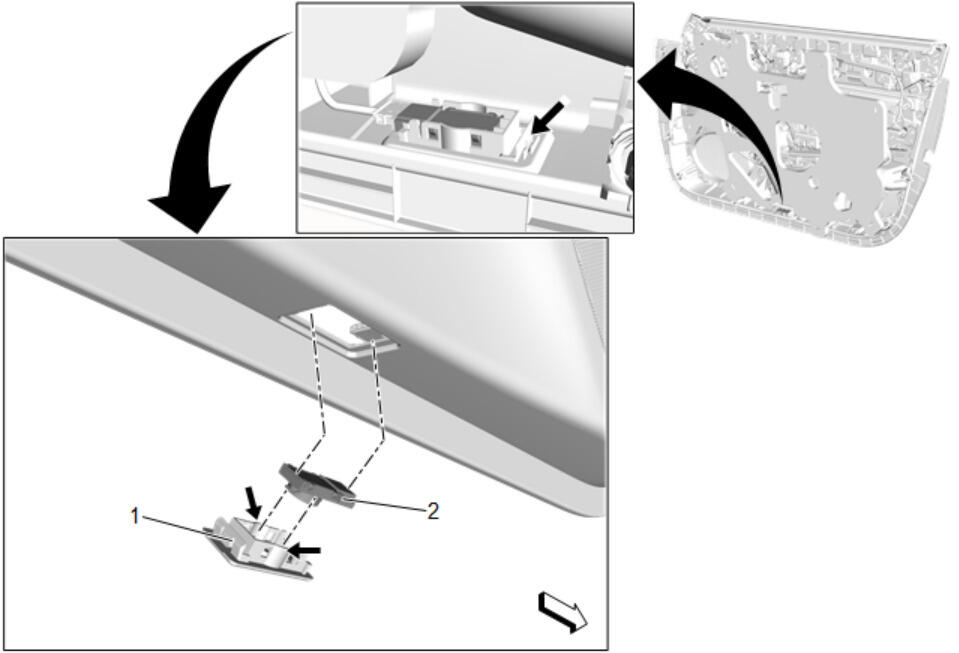

Callout	Component Name
Preliminary Procedure Remove the appropriate front side door trim: Front Side Door Trim Replacement - Driver Side Front Side Door Trim Replacement - Passenger Side
1	Front Side Door Courtesy Lamp Bracket Procedure Release the retaining tab and remove the bracket and lamp downward from the front side door trim.
2	Front Side Door Courtesy Lamp Procedure Disconnect the electrical connector. Release the retaining tabs. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Remove the appropriate front side door trim:

Front Side Door Trim Replacement - Driver Side
Front Side Door Trim Replacement - Passenger Side

Front Side Door Courtesy Lamp Bracket
Procedure
Release the retaining tab and remove the bracket and lamp downward from the front side door trim.

Front Side Door Courtesy Lamp

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Transfer components as necessary.
