Front Floor Console Compartment Lamp Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Floor Console Armrest Replacement , or Front Floor Console Armrest Replacement (Blackwing) |
|

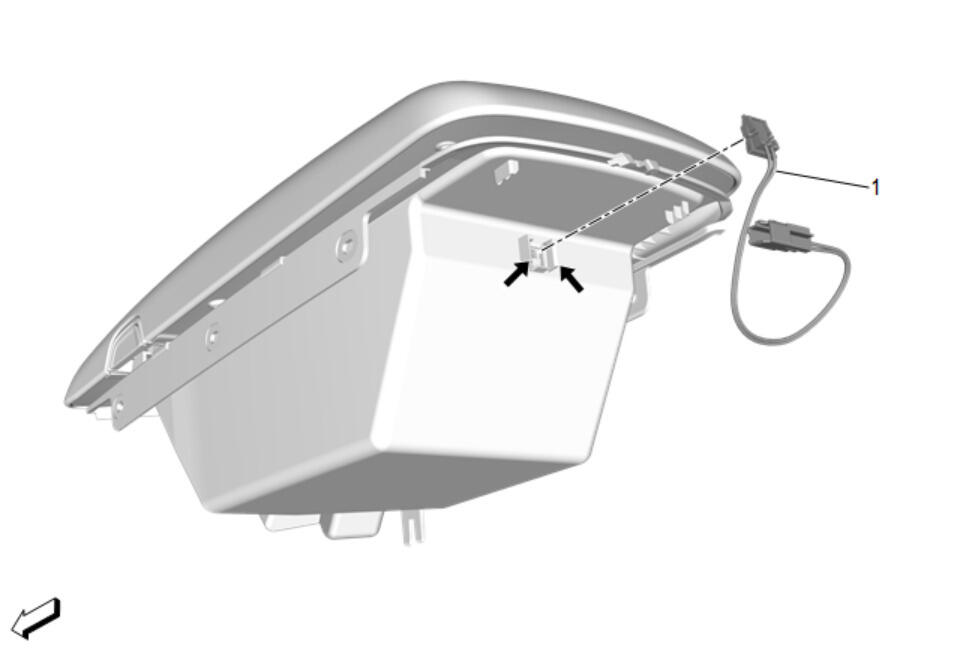

| 1 | Front Floor Console Compartment Lamp Procedure Release the retaining tabs. |
