Front Side Door Armrest Switch Mount Plate Replacement - Driver Side

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

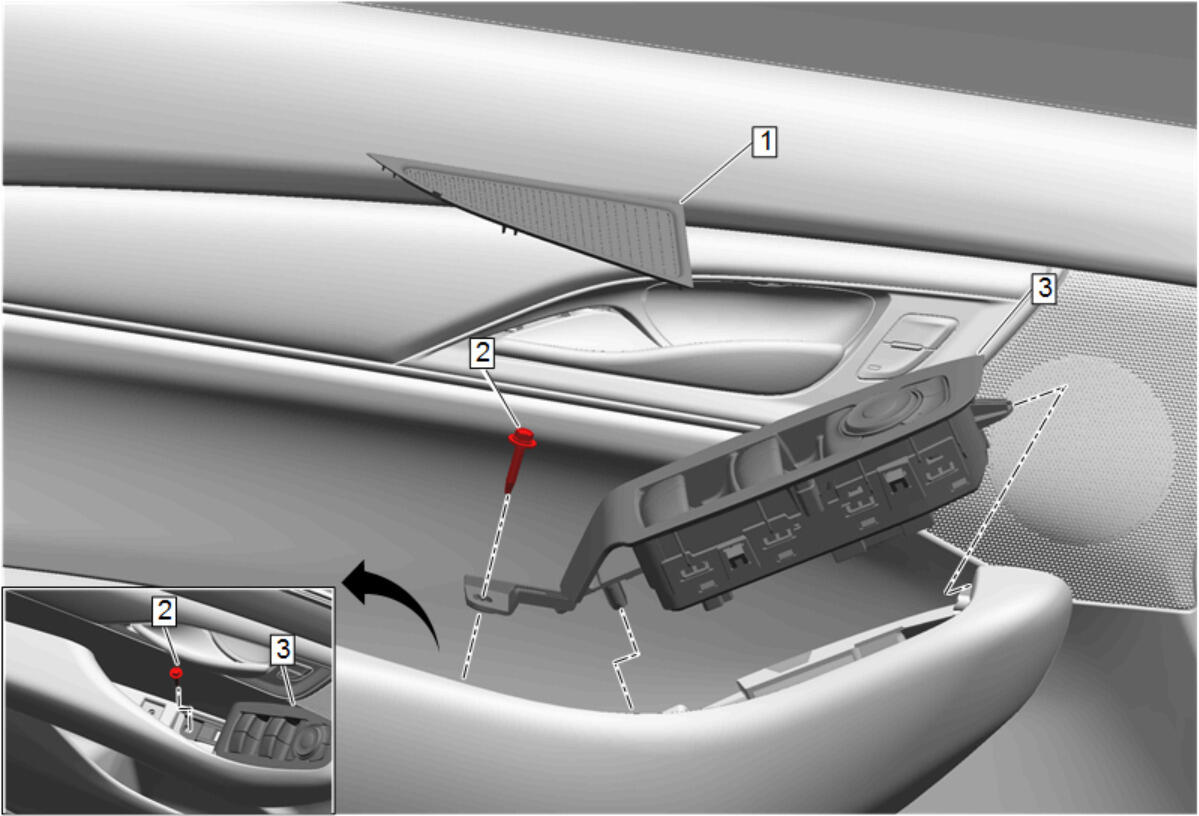

Callout	Component Name
1	Front Side Door Pull Cup Liner
2	Front Side Door Armrest Pull Cup Bolt Procedure Remove the front side door armrest pull cup bolt. Front Side Door Trim Replacement - Driver Side
3	Front Side Door Armrest Switch Mount Plate Procedure Using a flat bladed plastic trim tool, start at the rear of the armrest switch plate and gently insert trim tool to lift the front side door armrest switch mount plate from the door trim. Rotate the armrest switch mount plate up and rearward to unhook the front retaining feature. Disconnect all electrical connectors. Transfer components as necessary.

Callout

Component Name

Front Side Door Pull Cup Liner

Front Side Door Armrest Pull Cup Bolt
Procedure
Remove the front side door armrest pull cup bolt. Front Side Door Trim Replacement - Driver Side

Front Side Door Armrest Switch Mount Plate

Procedure

Using a flat bladed plastic trim tool, start at the rear of the armrest switch plate and gently insert trim tool to lift the front side door armrest switch mount plate from the door trim.
Rotate the armrest switch mount plate up and rearward to unhook the front retaining feature.
Disconnect all electrical connectors.
Transfer components as necessary.
