Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
GM5323422Courtesy of GENERAL MOTORS COMPANY
  1. Rear Compartment Lid Inner Panel Trim (1) - Remove - Rear Compartment Lid Inner Panel Trim Replacement

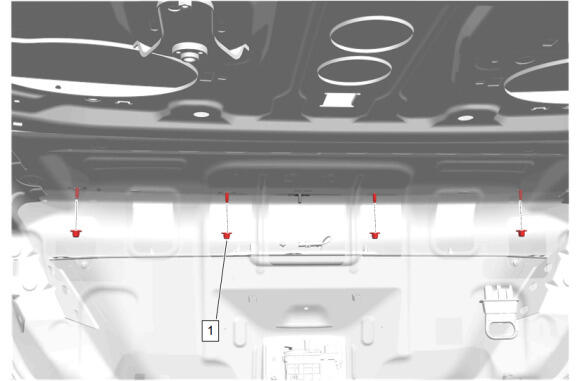

  2. GM5863846Courtesy of GENERAL MOTORS COMPANY

    Rear End Spoiler Nut (1) - Remove [4x]

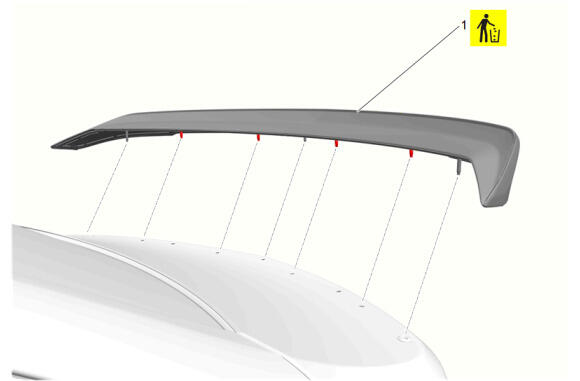

  3. GM5863847Courtesy of GENERAL MOTORS COMPANY

    Rear End Spoiler (1) - Remove and DISCARD
