Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

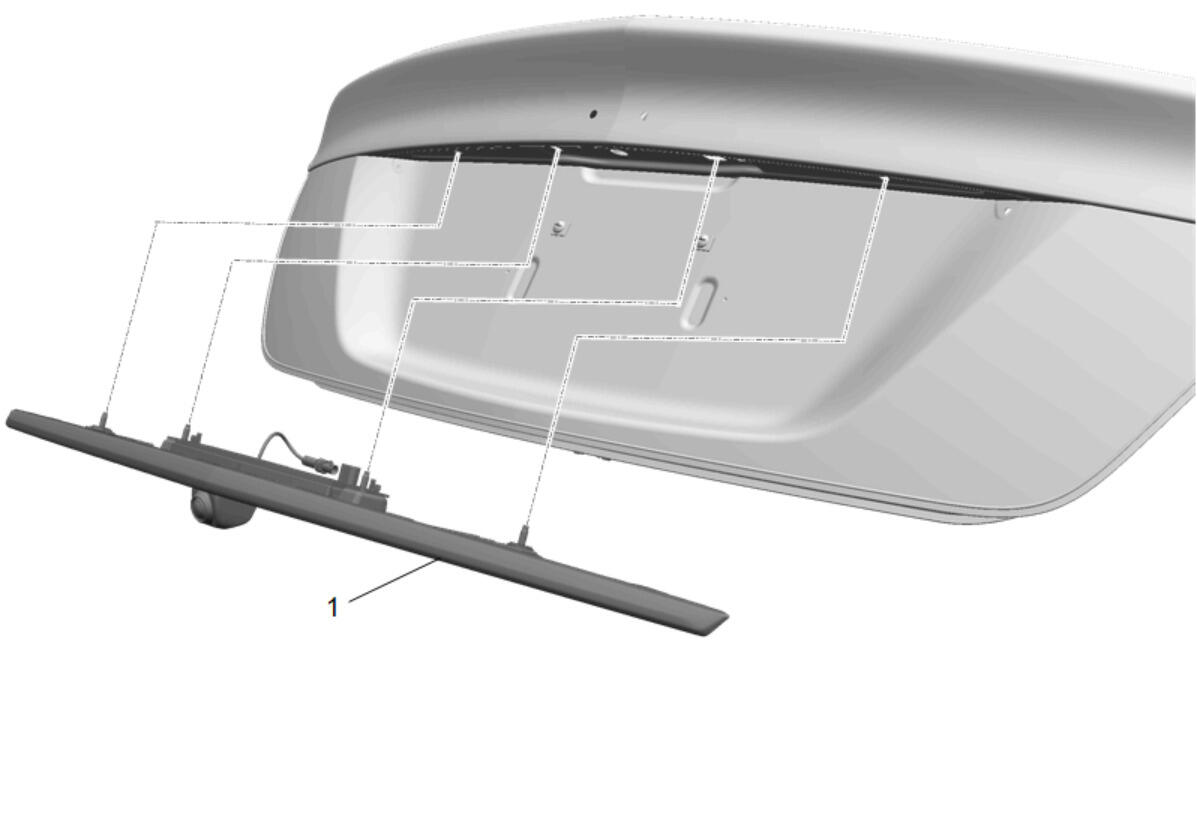

Rear Closure Center Applique (1) - Install
Connect the electrical connectors.
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

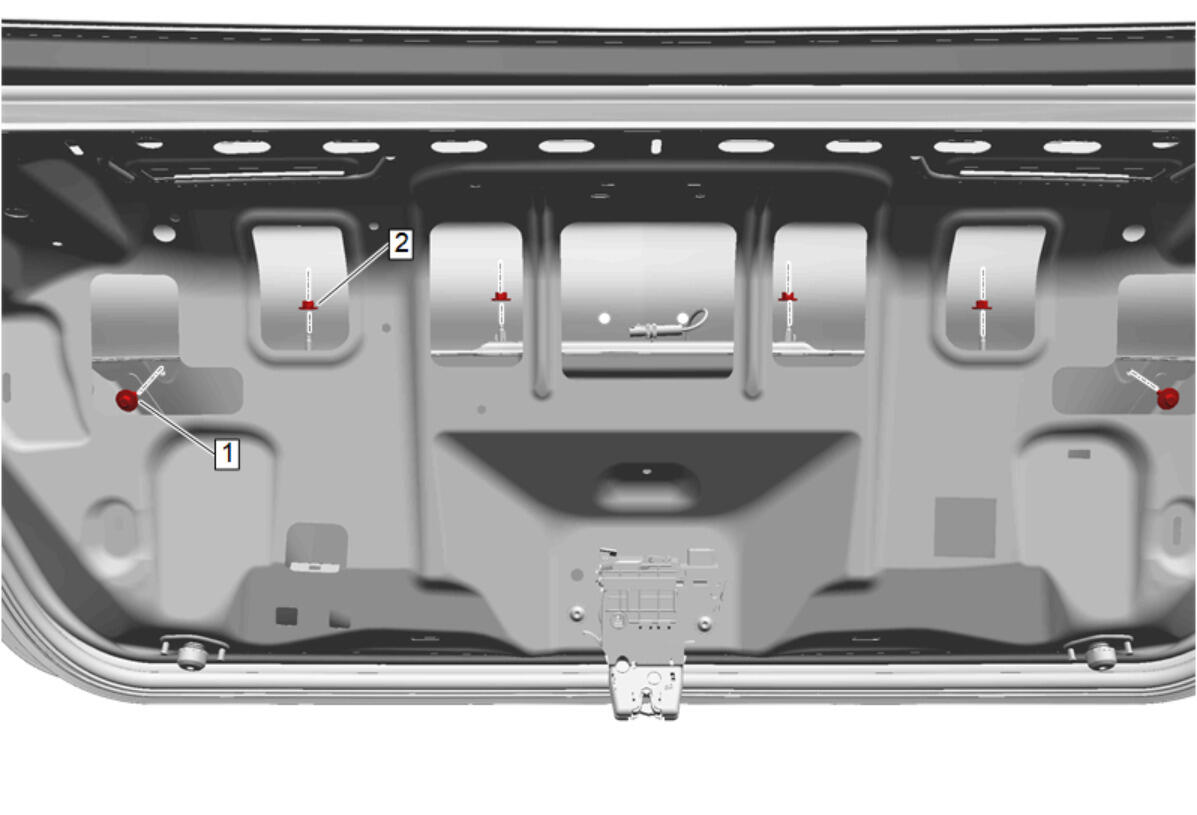

Rear Closure Center Applique Bolt (1) - Install and tighten [2x] 4.7 N.m (42 lb in)
Rear Closure Center Applique Nut (2) - Install and tighten [4x] 4.7 N.m (42 lb in)
Courtesy of GENERAL MOTORS COMPANY

Rear Compartment Lid Inner Panel Trim (1) - Install - Rear Compartment Lid Inner Panel Trim Replacement
