Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

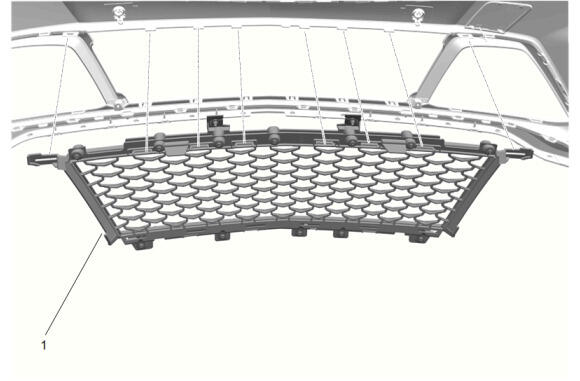

  1. GM5863849Courtesy of GENERAL MOTORS COMPANY

    Front Lower Grille (1) - Install

  2. GM5863848Courtesy of GENERAL MOTORS COMPANY

    Front Grille Clip (1) - Install [6x]

  3. GM5285217Courtesy of GENERAL MOTORS COMPANY

    Front Bumper Fascia (1) - Install - Front Bumper Fascia Replacement (with Blackwing)
