Front Grille Replacement (without Blackwing)

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

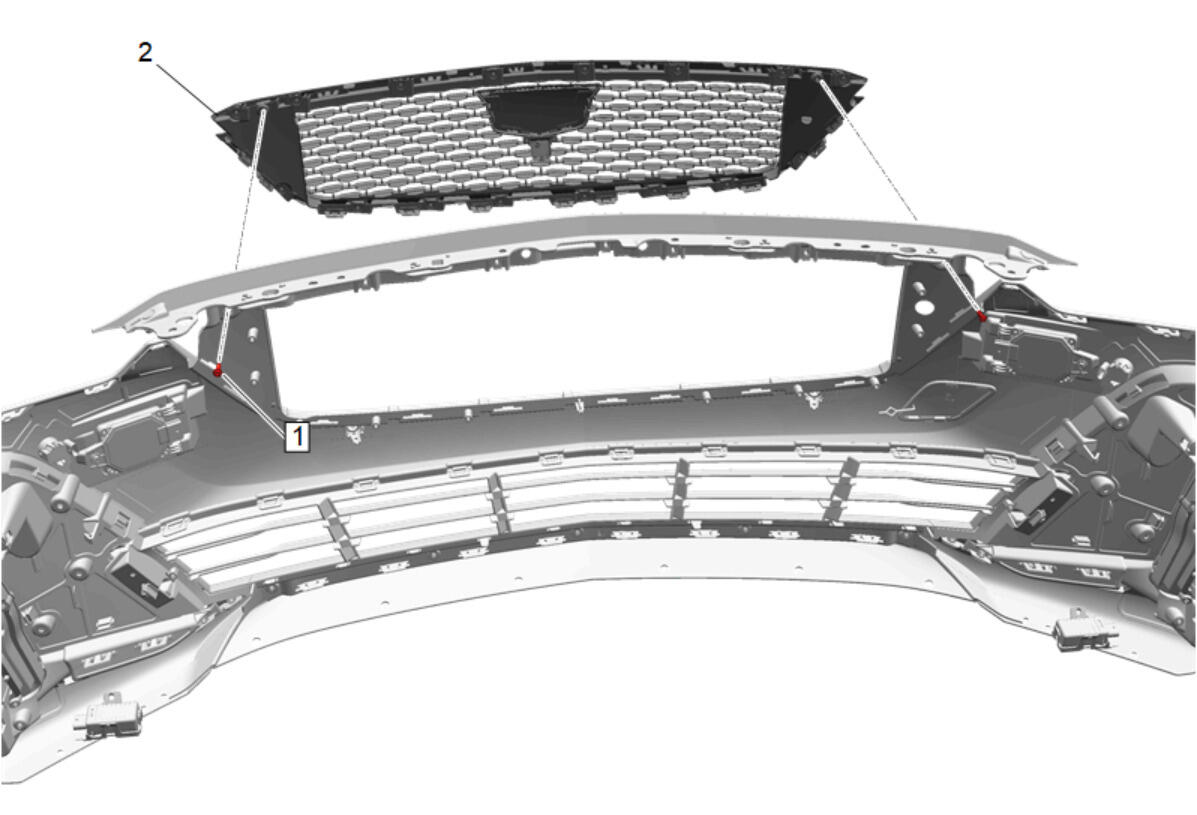

Callout	Component Name
Preliminary Procedure Front Bumper Shutter Frame Replacement
1	Front Grille Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Grille Procedure Using a suitable trim tool, release the locking tabs while carefully pulling the front grille from the front fascia. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Front Bumper Shutter Frame Replacement

Front Grille Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Front Grille

Procedure

Using a suitable trim tool, release the locking tabs while carefully pulling the front grille from the front fascia.
Transfer components as necessary.
