Front Grille Opening Cover Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

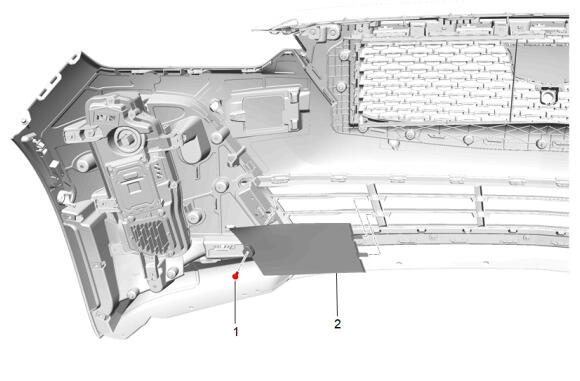

| Callout | Component Name |
|---|---|
| Preliminary Procedure Front Bumper Fascia Replacement (without Blackwing) , or Front Bumper Fascia Replacement (with Blackwing) |
|
| 1 | Front Lower Grille Bolt
CAUTION:
Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in) |
| 2 | Front Grille Opening Cover Procedure Pull the front grille opening cover rearward then outboard, in a swing motion, to remove. |
