Front Fog Lamp Bezel Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

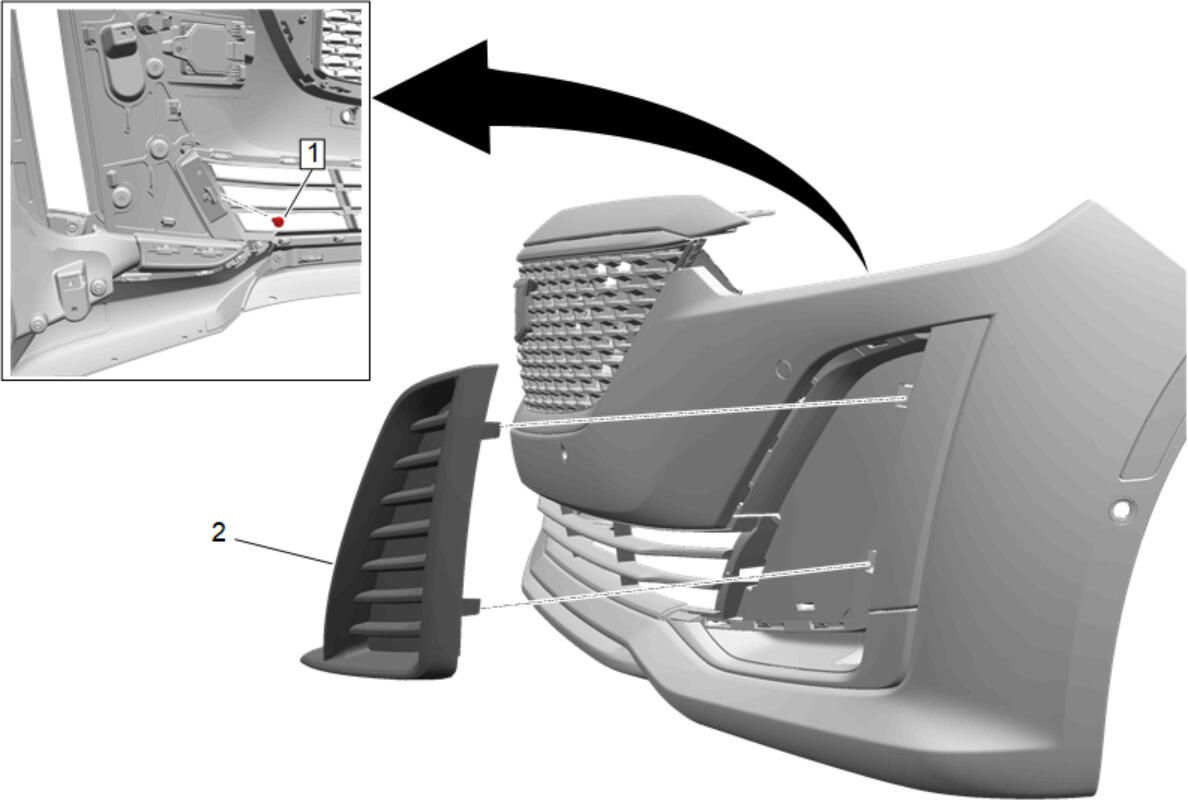

| Callout | Component Name |
|---|---|
| Preliminary Procedure Cornering Lamp Replacement |
|
| 1 | Front Grille Bolt Procedure Remove the front grille bolt. Front Lower Grille Replacement , or Front Lower Grille Replacement (Blackwing) |
| 2 | Front Fog Lamp Bezel Procedure Release the locking tabs. |
