Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rear Wheelhouse Liner-Right Side - Remove - Rear Wheelhouse Liner Replacement

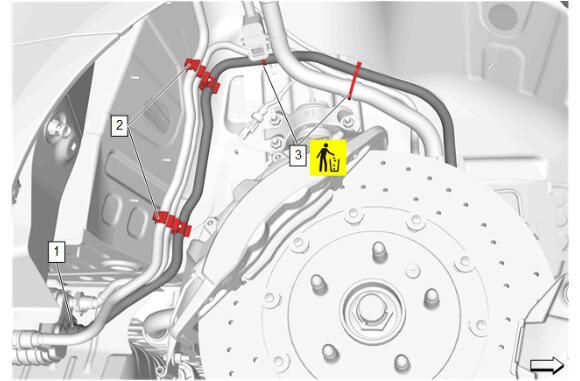

  2. GM5834928Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  3. Fuel Tank Vent Hose (1) @Retainer (2) - Remove [2x]
  4. Evaporative Emission Canister Filter Hose Strap (3) - Remove and DISCARD [2x]

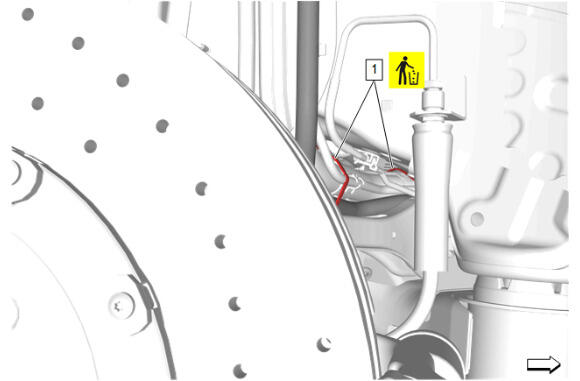

  5. GM5834929Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Filter Hose Strap (1) - Remove and DISCARD [2x]

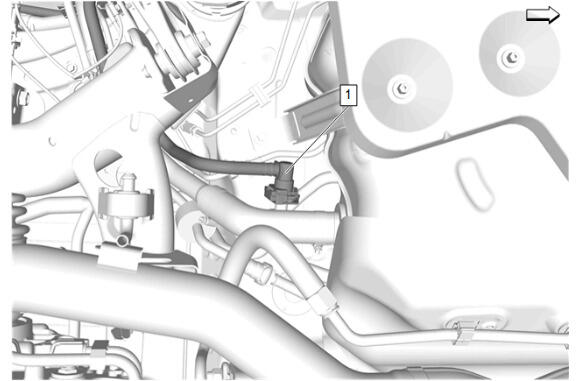

  6. GM5834930Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

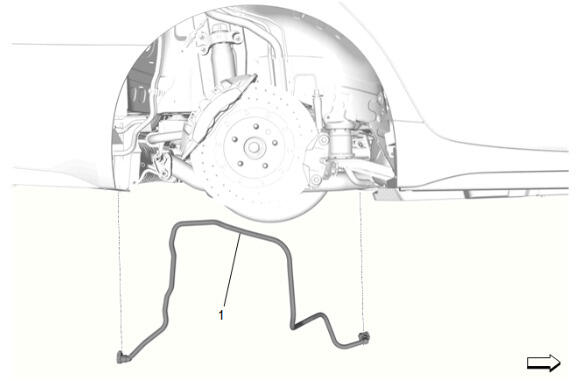

  7. GM5834932Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (1) - Remove
