Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Propeller Shaft - Remove - Propeller Shaft Replacement (with LT4, MJK) , or Propeller Shaft Replacement (with LT4, MHX) , or Propeller Shaft Replacement (AWD)
- Transmission Fluid Auxiliary Cooler Inlet Pipe - Remove - Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (MJK) , or Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (MHX)
- Transmission Fluid Auxiliary Cooler Outlet Pipe - Remove - Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (MJK) , or Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (MHX)

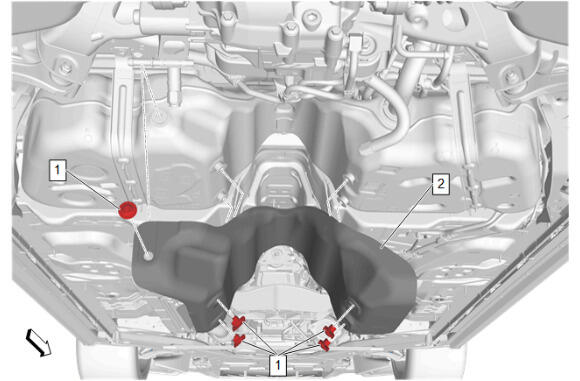

Fuel Tank Shield Retainer (1) - Remove [5x]
- Fuel Tank Shield (2) - Remove
