Fuel Tank Filler Hose Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

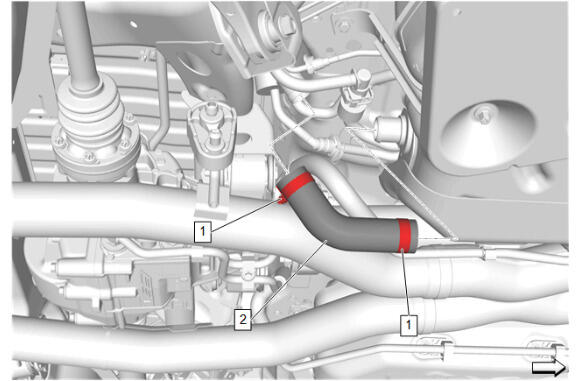

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Drain the fuel enough to remove the hose. Fuel Tank Draining Raise and support the vehicle. Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

WARNING:

Refer to Diesel/Gasoline Vapors Warning .

WARNING:

Refer to Safety Glasses Warning .

Preliminary Procedures

Drain the fuel enough to remove the hose. Fuel Tank Draining
Raise and support the vehicle. Lifting and Jacking the Vehicle

Fuel Tank Filler Hose Clamp [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
3.5 N.m (31 lb in)

Fuel Tank Filler Hose
