Fuel Sender Wiring Harness Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

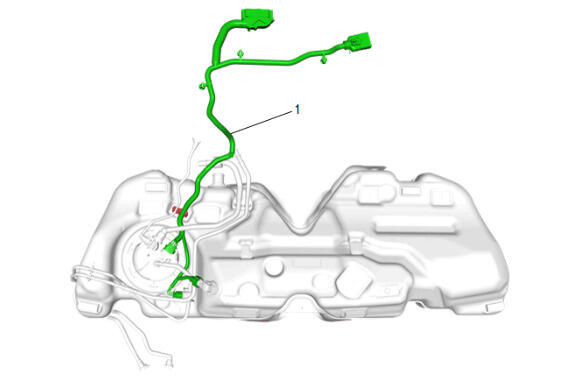

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Preliminary Procedure Fuel Tank Replacement Refer to Safety Glasses Warning . |
|
| 1 | Fuel Sender Wiring Harness
NOTE:
Typical wiring harness shown, depending on option content the harness may look different. Procedure Disconnect the wiring harness from the fuel tank fuel pump module, the fuel tank pressure sensor, the fuel pressure sensor and remove from the retainer. |
