Single Use Fasteners and Components

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

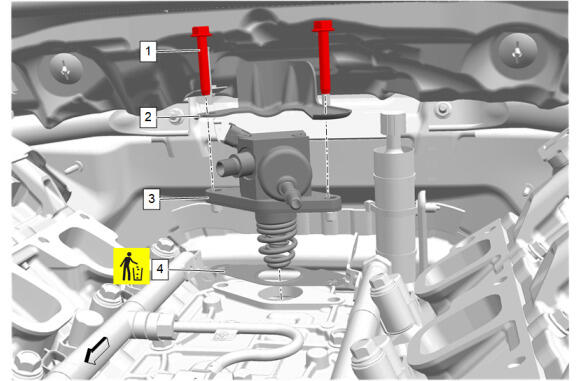

Fuel Pump Bracket Gasket

GM5835334Courtesy of GENERAL MOTORS COMPANY
NOTE: Callouts in the following chart represent components shown in graphic above.
Callout Component Name

Preliminary Procedures

  1. Fuel Pump Insulator Replacement
  2. Fuel Feed Pipe Replacement - Engine
  3. Fuel Feed Intermediate Pipe Replacement - Position 1
1 Fuel Pump Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
25 N.m (18 lb ft)
2 Fuel Pump Cover
3 Fuel Pump
4 Fuel Pump Bracket Gasket

Procedure

  1. Disconnect the electrical connector.
  2. Use the EN-51092  alignment gauge to ensure that the camshaft lobe is in the base circle position. At base circle position, the tool will be flush with the top surface of the lifter oil manifold assembly.

Special Tools
EN-51092  Fuel Pump Installation Gauge
