Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

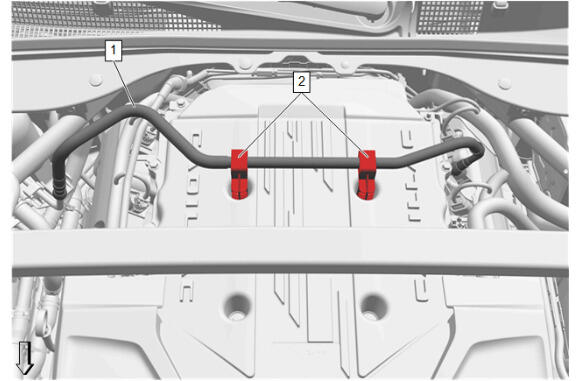

  1. GM5835360Courtesy of GENERAL MOTORS COMPANY

    Fuel Feed Front Hose (1) - Install

  2. Fuel Feed Hose Clip (2) - Engage [2x]
  3. Fuel Feed Front Hose (1) - Connect [2x] - Metal Collar Quick Connect Fitting Service
  4. Pressurize the fuel system and inspect for leaks.
