Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

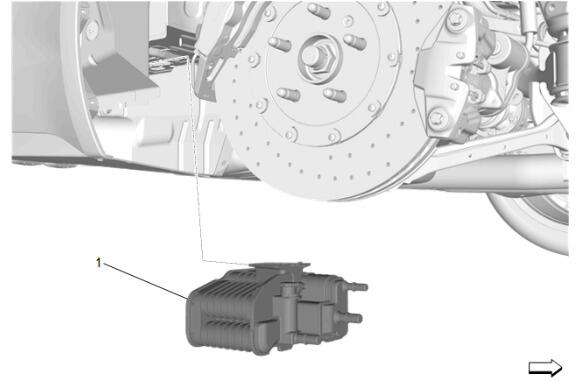

  1. GM5831526Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister (1) - Install

  2. Connect the electrical connector.

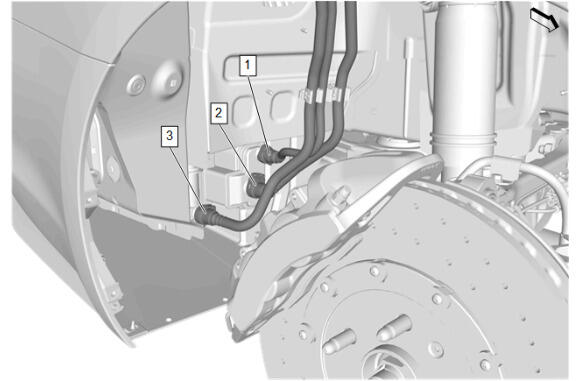

  3. GM5831525Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Air Inlet Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  4. Fuel Tank Vent Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
  5. Evaporative Emission Canister Purge Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service
  6. Rear Wheelhouse Liner-Right Side - Install - Rear Wheelhouse Liner Replacement
