Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Intake Manifold Cover - Remove - Intake Manifold Cover Replacement

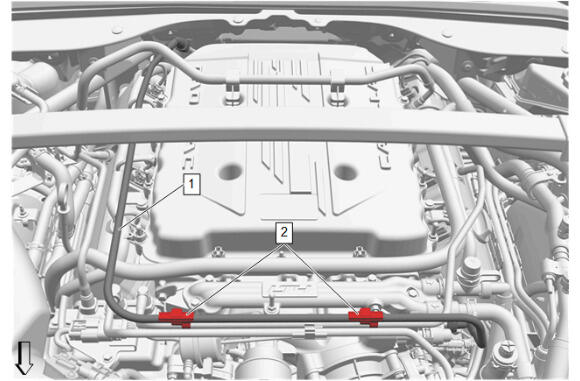

  2. GM5835355Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (1) - Disconnect [2x] - Plastic Collar Quick Connect Fitting Service

  3. Evaporative Emission Canister Purge Tube Clip (2) - Disengage [2x]
  4. Evaporative Emission Canister Purge Tube (1) - Remove
