Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

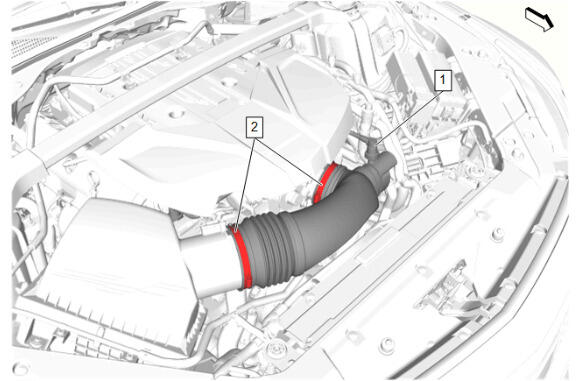

  1. GM5831523Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct Positive Crankcase Ventilation Tube (1) - Disconnect - Plastic Collar Quick Connect Fitting Service

  2. Air Cleaner Outlet Duct Clamp (2) - Loosen [2x]
  3. Remove the retainers from the air cleaner outlet duct.
  4. GM5831524Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Remove
