Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5519724Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (1) - Remove - Air Cleaner Outlet Duct Replacement

  2. GM5523147Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Arm Retainer (1) - Remove

  3. Turbocharger Wastegate Actuator (2) - Remove
  4. Turbocharger Wastegate Actuator Rod Spring (3) - Remove
  5. Disconnect the electrical connector.

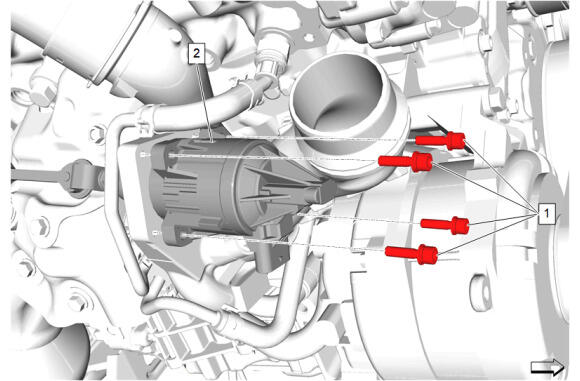

  6. GM5523148Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Bolt (1) - Remove [4x]

  7. Turbocharger Wastegate Actuator (2) - Remove
