Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

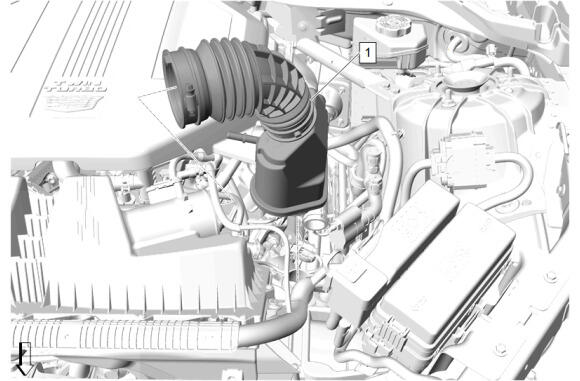

  1. GM5519727Courtesy of GENERAL MOTORS COMPANY

    Auxiliary Air Cleaner Outlet Duct (1) - Remove - Auxiliary Air Cleaner Outlet Duct Replacement

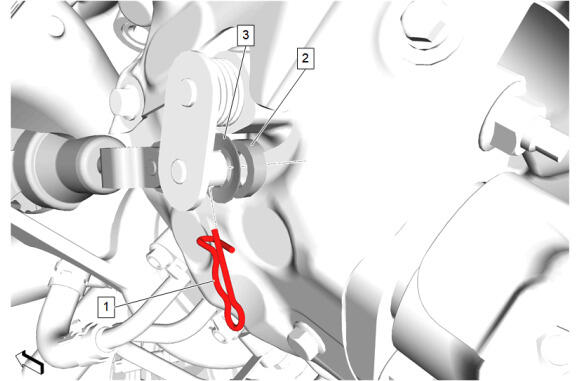

  2. GM5523144Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Arm Retainer (1) - Remove

  3. Turbocharger Wastegate Actuator (2) - Remove
  4. Turbocharger Wastegate Actuator Rod Spring (3) - Remove
  5. Disconnect the electrical connector.

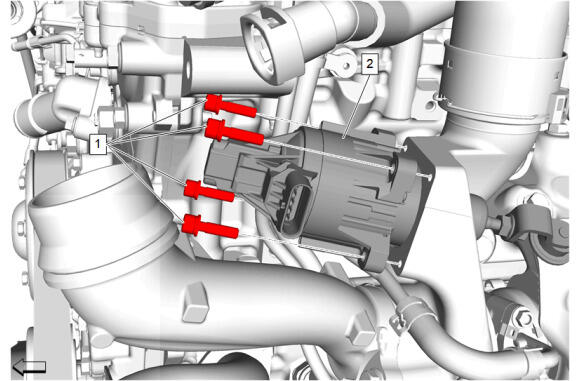

  6. GM5523146Courtesy of GENERAL MOTORS COMPANY

    Turbocharger Wastegate Actuator Bolt (1) - Remove [4x]

  7. Turbocharger Wastegate Actuator (2) - Remove
