Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

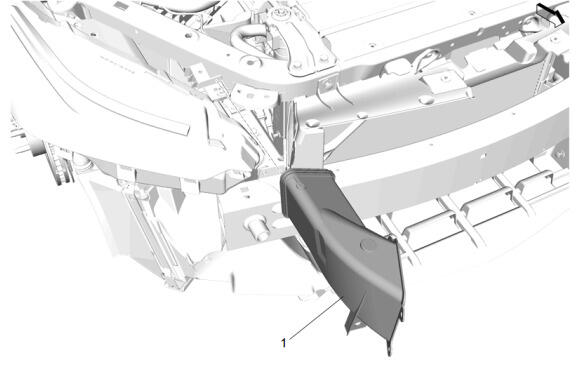

  1. GM5519744Courtesy of GENERAL MOTORS COMPANY

    Intake Air Duct (1) - Install

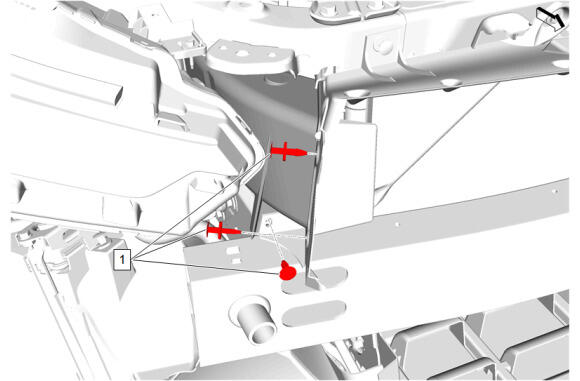

  2. GM5519743Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Install [3x]

  3. Front Bumper Fascia - Install - Front Bumper Fascia Replacement (without Blackwing)Front Bumper Fascia Replacement (with Blackwing)
