Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Propeller Shaft - Remove - Propeller Shaft Replacement (without LT4)Propeller Shaft Replacement (with LT4, MJK)Propeller Shaft Replacement (with LT4, MHX)Propeller Shaft Replacement (AWD)

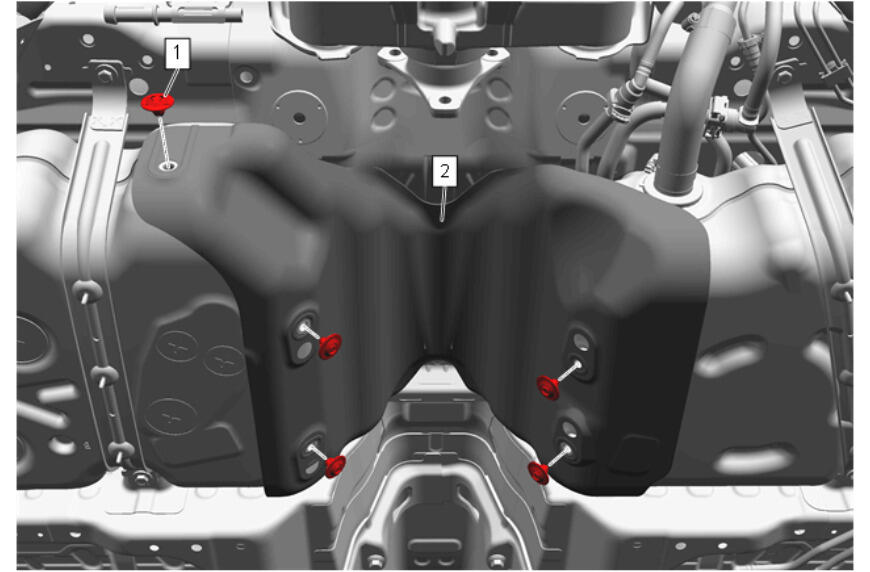

  2. GM5468696Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Shield Retainer (1) - Remove [5x]

  3. Fuel Tank Shield (2) - Remove
