Fuel Tank Filler Hose Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

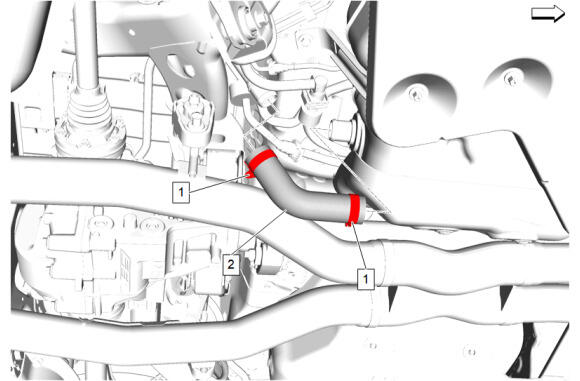

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Drain the fuel enough to remove hose. Fuel Tank Draining Lifting and Jacking the Vehicle
1	Fuel Tank Filler Hose Clamp [2x] CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Fuel Tank Filler Hose

Callout

Component Name

Preliminary Procedure

Drain the fuel enough to remove hose. Fuel Tank Draining
Lifting and Jacking the Vehicle

Fuel Tank Filler Hose Clamp [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
3.5 N.m (31 lb in)

Fuel Tank Filler Hose
