Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

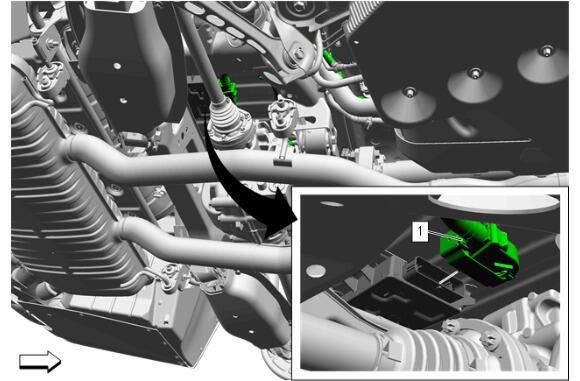

  1. GM5471859Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) - Disconnect

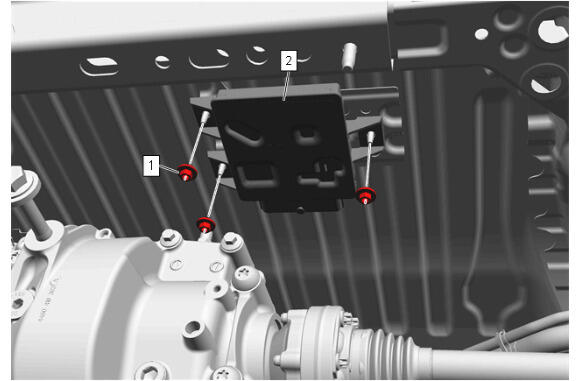

  2. GM5471863Courtesy of GENERAL MOTORS COMPANY

    Fuel Pump Power Control Module Nut (1) - Remove [3x]

  3. Fuel Pump Power Control Module (2) - Remove
