Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Lower the drivetrain and front suspension cradle as far as necessary. Drivetrain and Front Suspension Cradle Removal and Installation (Blackwing)Drivetrain and Front Suspension Cradle Removal and Installation (RWD LGY)Drivetrain and Front Suspension Cradle Removal and Installation (AWD LGY)

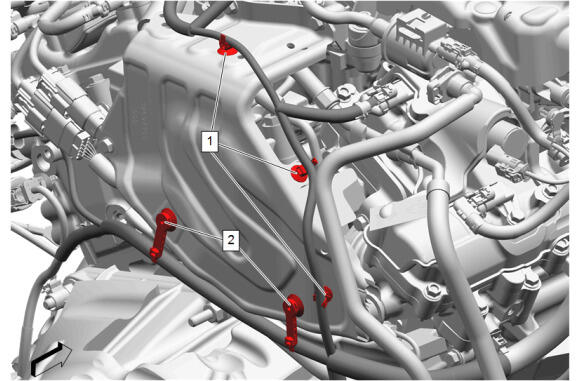

Engine Wiring Harness Clip (1) @Fuel Pipe Shield - Remove [3x]
- Engine Wiring Harness Clip (2) @Fuel Pipe Shield - Remove [2x]
- Engine Wiring Harness - Position aside
Fuel Pipe Shield Bolt (1) - Remove [2x]
- Fuel Pipe Shield Bolt (2) - Loosen
- Fuel Pipe Shield Bolt (3) - Remove
- Fuel Pipe Shield (4) - Remove
NOTE:
The fuel pipe shield bolt (2) is retained in the fuel pipe shield by an insulator, it is not necessary to remove it from the fuel pipe shield.
