Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5516397Courtesy of GENERAL MOTORS COMPANY

    Direct Fuel Injection Fuel Rail-Bank 2 (1) - Remove - Fuel Injection Fuel Rail Assembly Replacement - Bank 2

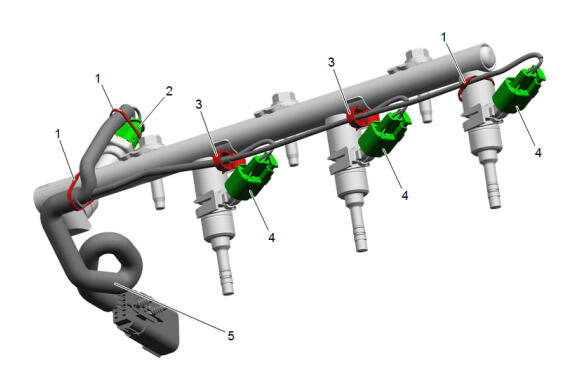

  2. GM5517126Courtesy of GENERAL MOTORS COMPANY

    Cable Tie (1) Remove and DISCARD [3x]

  3. Electrical Connector (2) @Fuel Injection Fuel Rail Fuel Pressure Sensor - Disconnect
  4. Electrical Connector (4) @Indirect Fuel Injector - Disconnect [3x]
  5. Retainer Clip (3) @Fuel Injection Fuel Rail - Remove [2x]
  6. Fuel Injector Wiring Harness (5) - Remove
