Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

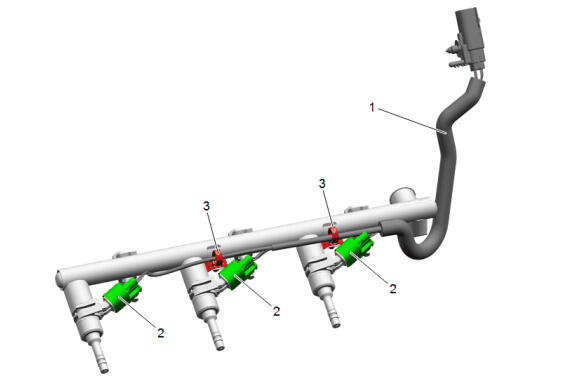

  1. GM5517092Courtesy of GENERAL MOTORS COMPANY

    Fuel Injector Wiring Harness (1) - Install

  2. Retainer Clip (3) @Fuel Injection Fuel Rail - Install [2x]
  3. Electrical Connector (2) @Indirect Fuel Injector - Connect [3x]
  4. GM5515764Courtesy of GENERAL MOTORS COMPANY

    Direct Fuel Injection Fuel Rail-Bank 1 (1) - Install - Fuel Injection Fuel Rail Assembly Replacement - Bank 1
