Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Refer to Fuel and Evaporative Emission Hose/Pipe Connection Cleaning Caution .
NOTE:High pressure fuel feed pipes are one time use only. ALWAYS install a NEW high pressure fuel feed pipe if the pipe is removed OR the fittings are loosened.

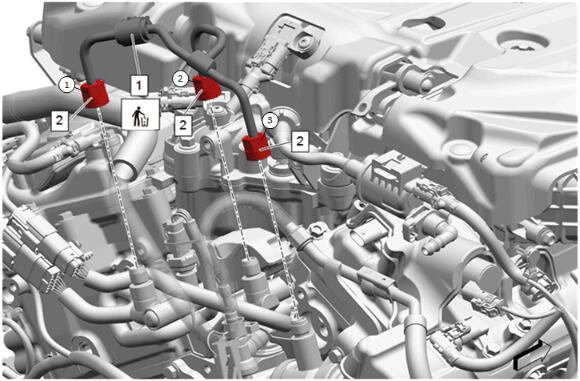

Fuel Feed Intermediate Pipe (1) - Install NEW
- Nut@Fuel Feed Intermediate Pipe (2) - Install and tighten in sequence [3x] 28 N.m (21 lb ft)
- Inspect for leaks using the following procedure:
- Turn ON the ignition with the engine OFF for 2 seconds.
- Turn OFF the ignition for 10 seconds.
- Turn ON the ignition with the engine OFF.
- Inspect for fuel leaks.
- WARNING:
The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.
Engine Rear Noise Shield (1) - Install - Engine Rear Noise Shield Replacement
CAUTION:
Refer to Component Fastener Tightening Caution .
