Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the electrical connector.

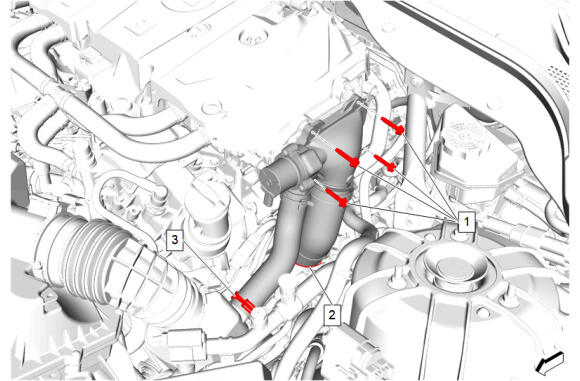

Charge Air Cooler Inlet Air Tube Bolt (1) - Remove [4x]
- Charge Air Cooler Inlet Air Hose Retainer Spring (2) - Disengage
- Charge Air Bypass Valve Hose Clamp (3) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

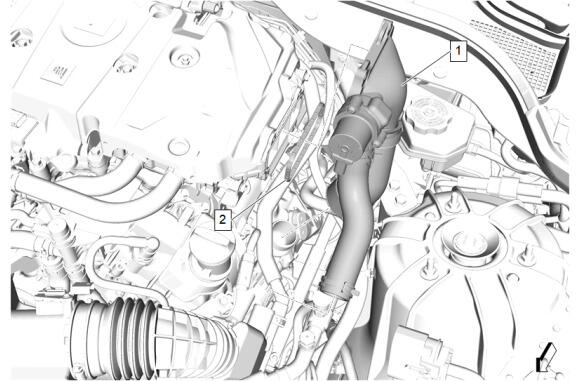

Charge Air Cooler Inlet Air Tube (1) - Remove
- Charge Air Cooler Inlet Air Tube Seal (2) - Remove and DISCARD
