Charge Air Bypass Valve Hose Replacement - Left Side
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

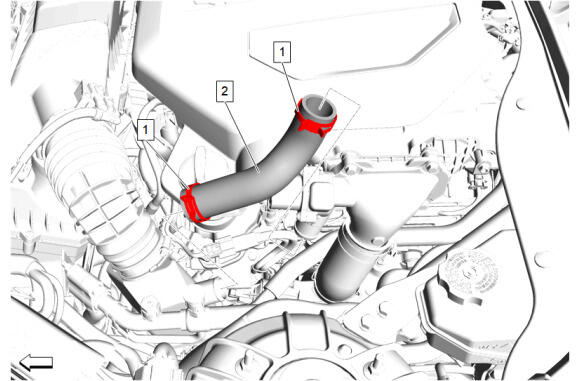

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
| 1 | Charge Air Bypass Valve Hose Clamp [2x] Procedure Hose Clamp Replacement Guidelines - Spring Type |
| 2 | Charge Air Bypass Valve Hose |
