Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

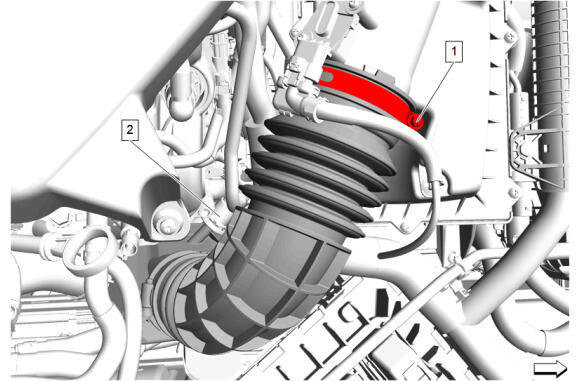

Air Cleaner Outlet Duct Clamp (1) - Loosen
- Positive Crankcase Ventilation Tube (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

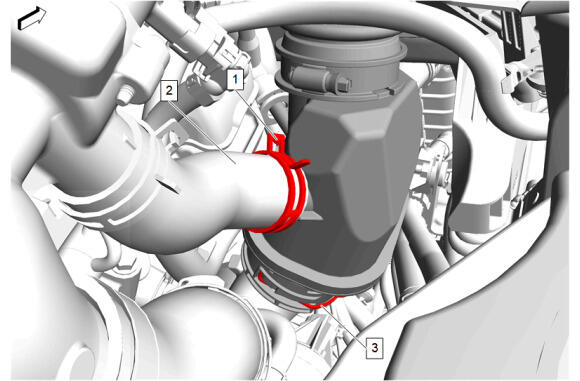

Charge Air Bypass Valve Hose Clamp (1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Charge Air Bypass Valve Hose (2) - Remove
- Retaining Clip (3) - Disengage
Air Cleaner Outlet Duct (1) - Remove
