Air Cleaner Element Replacement
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

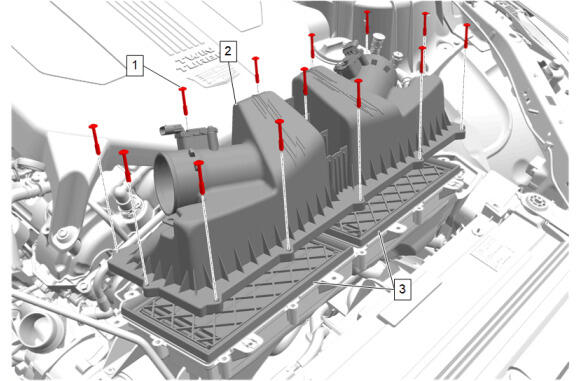

Callouts in the following chart represent components shown in graphic above.
| Callout | Component Name |
|---|---|
|
Preliminary Procedures
|
|
| 1 | Air Cleaner Housing Cover Bolt [13x]
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Air Cleaner Housing Cover |
| 3 | Air Cleaner Element [2x] |
