Turbocharger/Supercharger Boost Pressure Sensor Replacement

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

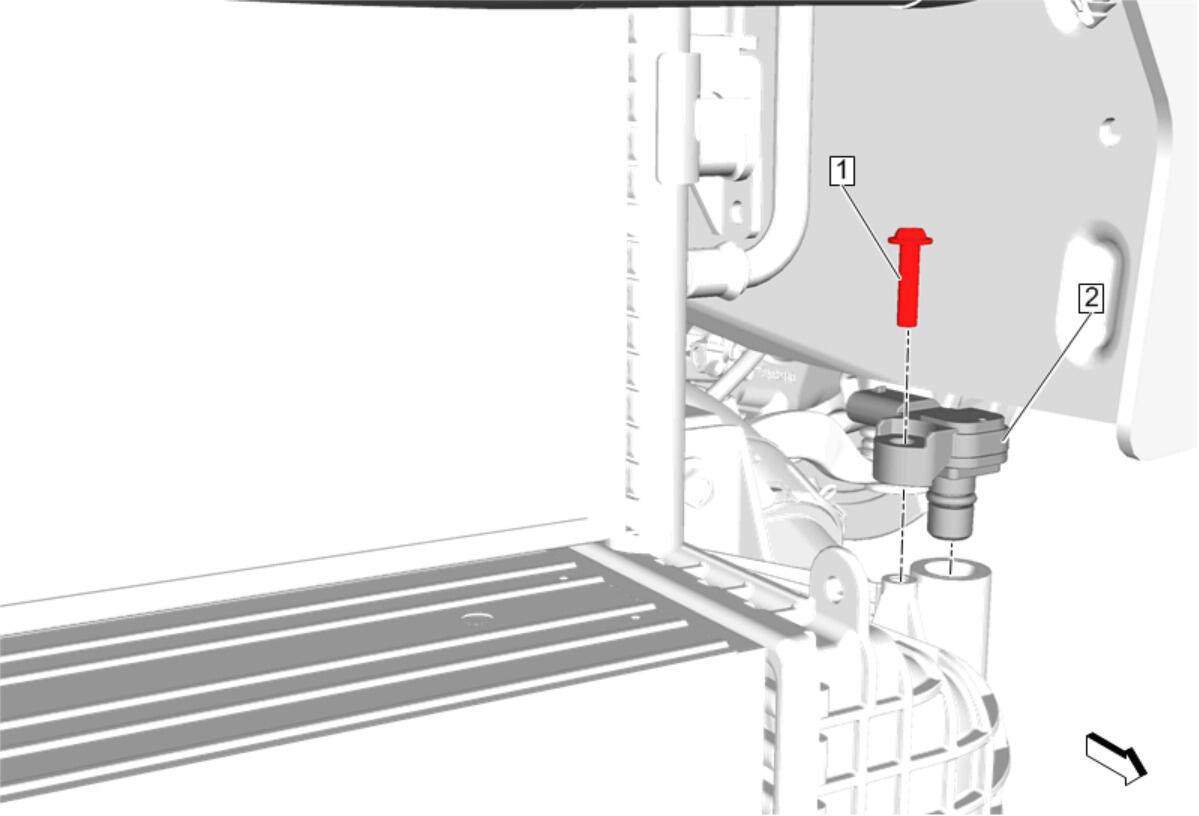

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Wheelhouse Liner-Left Side - Remove Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)
1	Turbocharger Air Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Turbocharger Air Pressure Sensor Procedure Disconnect the electrical connector. Perform the intake system learned values reset. Intake System Learned Values Reset

Callout

Component Name

Preliminary Procedure
Front Wheelhouse Liner-Left Side - Remove Front Wheelhouse Liner Replacement , or Front Wheelhouse Liner Replacement (Blackwing)

Turbocharger Air Pressure Sensor Bolt

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Turbocharger Air Pressure Sensor

Procedure

Disconnect the electrical connector.
Perform the intake system learned values reset. Intake System Learned Values Reset
