Installation Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

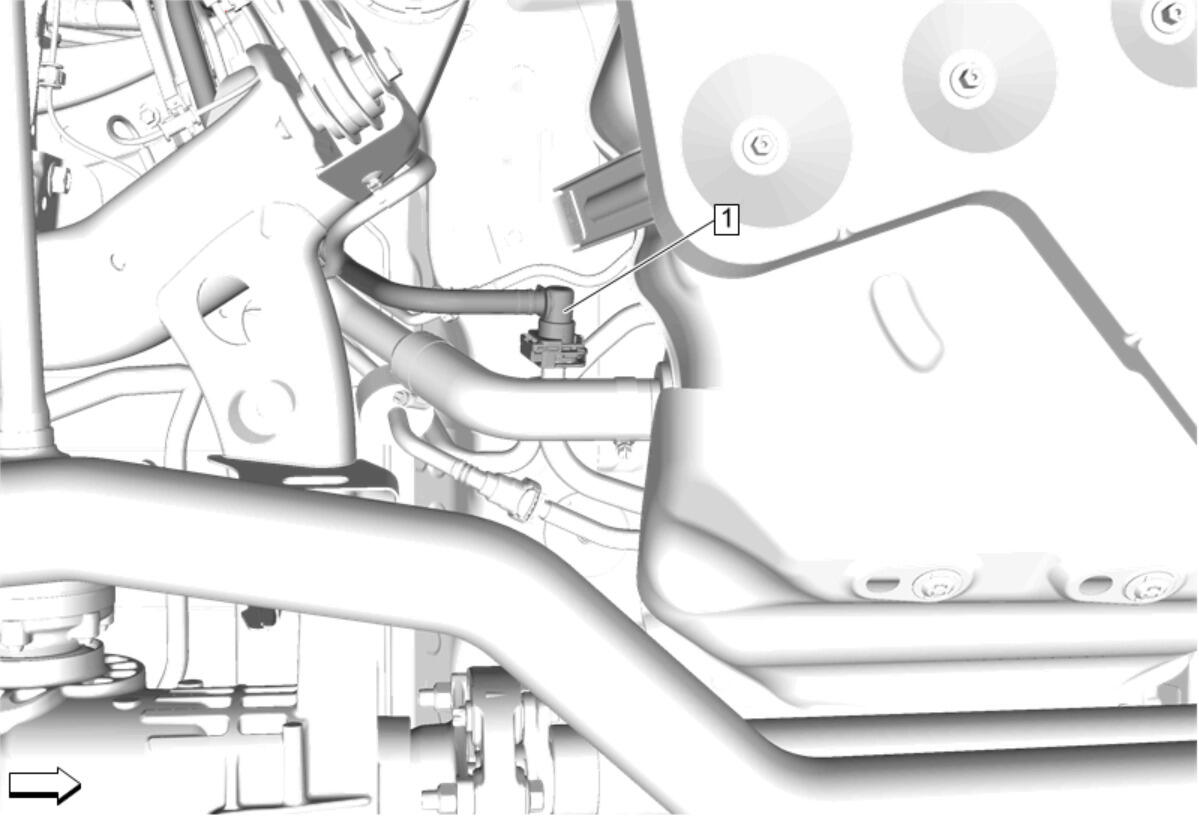

  1. GM5311564Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (1) - Install

  2. Fuel Tank Vent Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

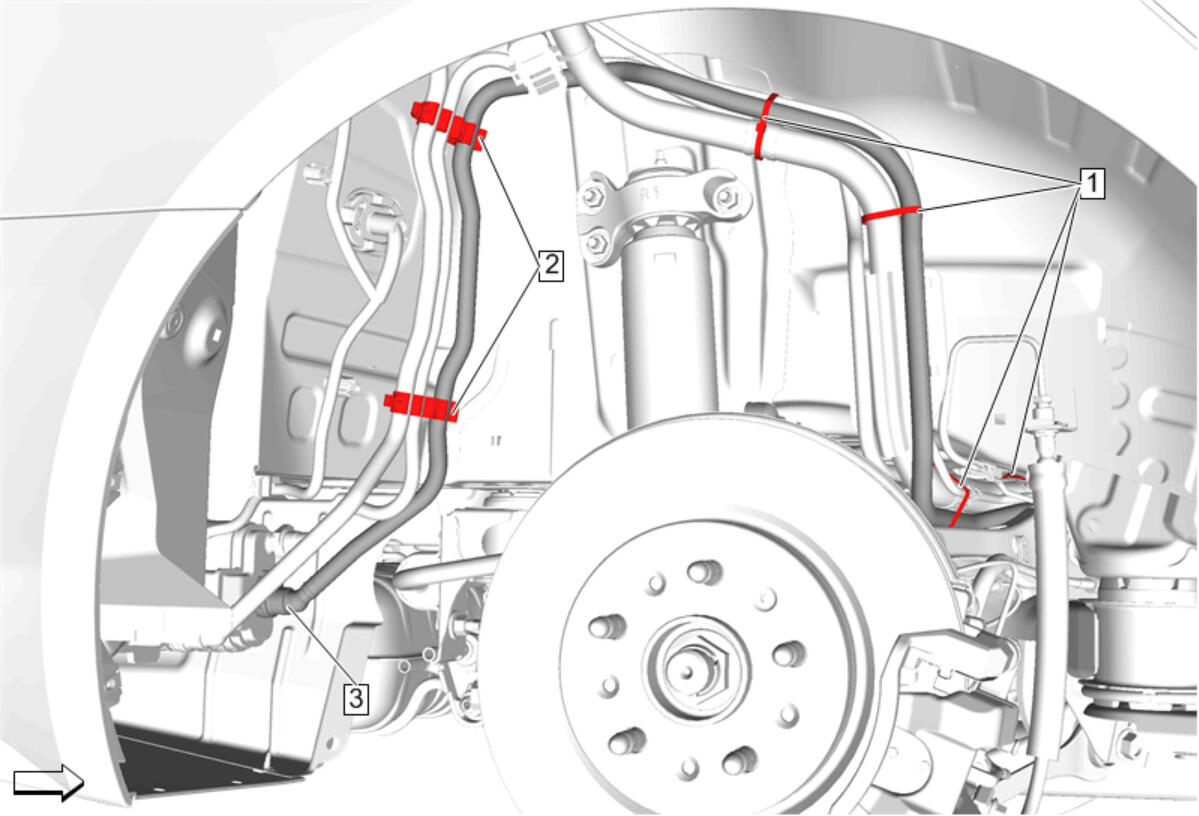

  3. GM5311562Courtesy of GENERAL MOTORS COMPANY

    Fuel Tank Vent Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service

  4. Retainer (2) - Install [2x]
  5. Tie Strap (1) - Install NEW [4x]
  6. Rear Wheelhouse Liner-Right Side - Install - Rear Wheelhouse Liner Replacement
