Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Relieve the fuel system pressure. Fuel Pressure Relief
- Drain the fuel tank. Fuel Tank Draining
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Propeller Shaft - Remove - Propeller Shaft Replacement (AWD)
Wiring Harness Connector (1) - Disconnect [2x]
- Remove all wiring harness retainers from vehicle.
Fuel Tank Vent Valve Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Pump Fuel Feed Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

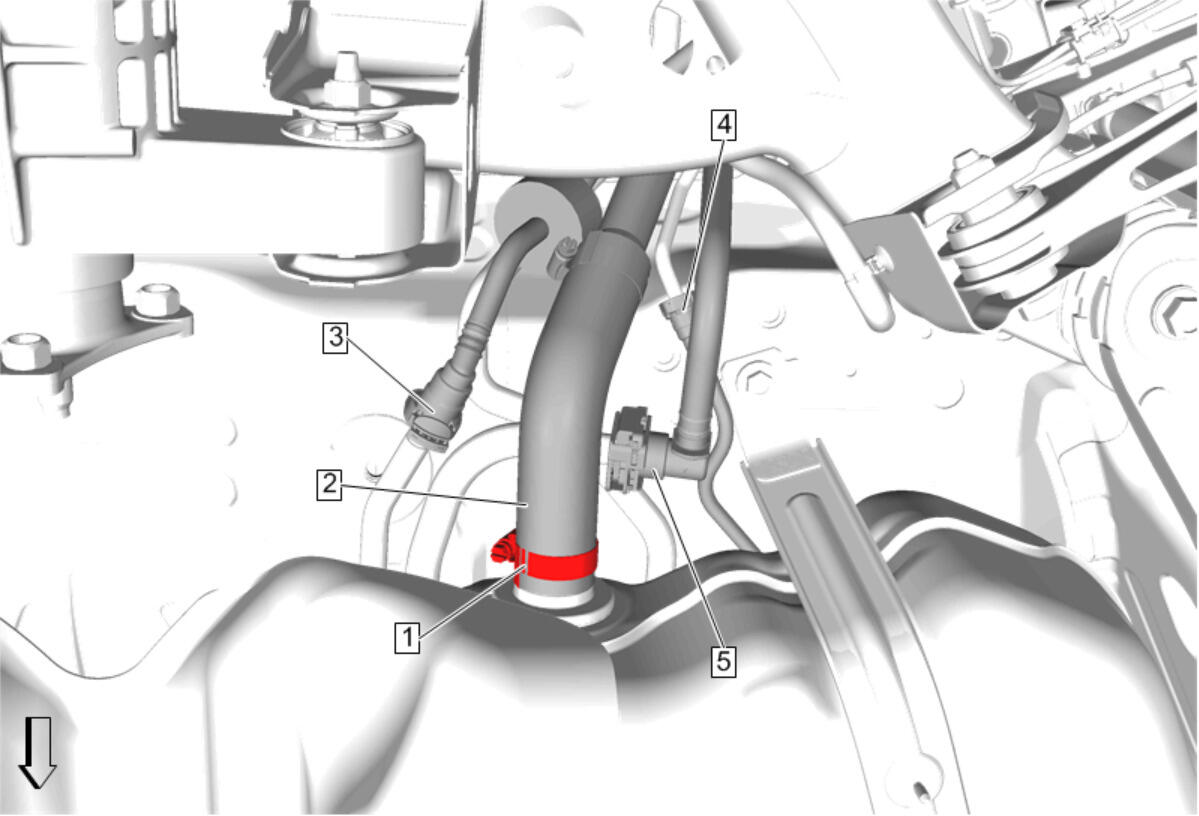

Fuel Tank Filler Hose Clamp (1) - Loosen
- Fuel Tank Filler Hose - (2) Remove
- Evaporative Emission Canister Purge Hose (3) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Evaporative Emission Valve Hose (4) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Vent Hose (5) - Disconnect - Plastic Collar Quick Connect Fitting Service
Place a suitable adjustable jack under the fuel tank.

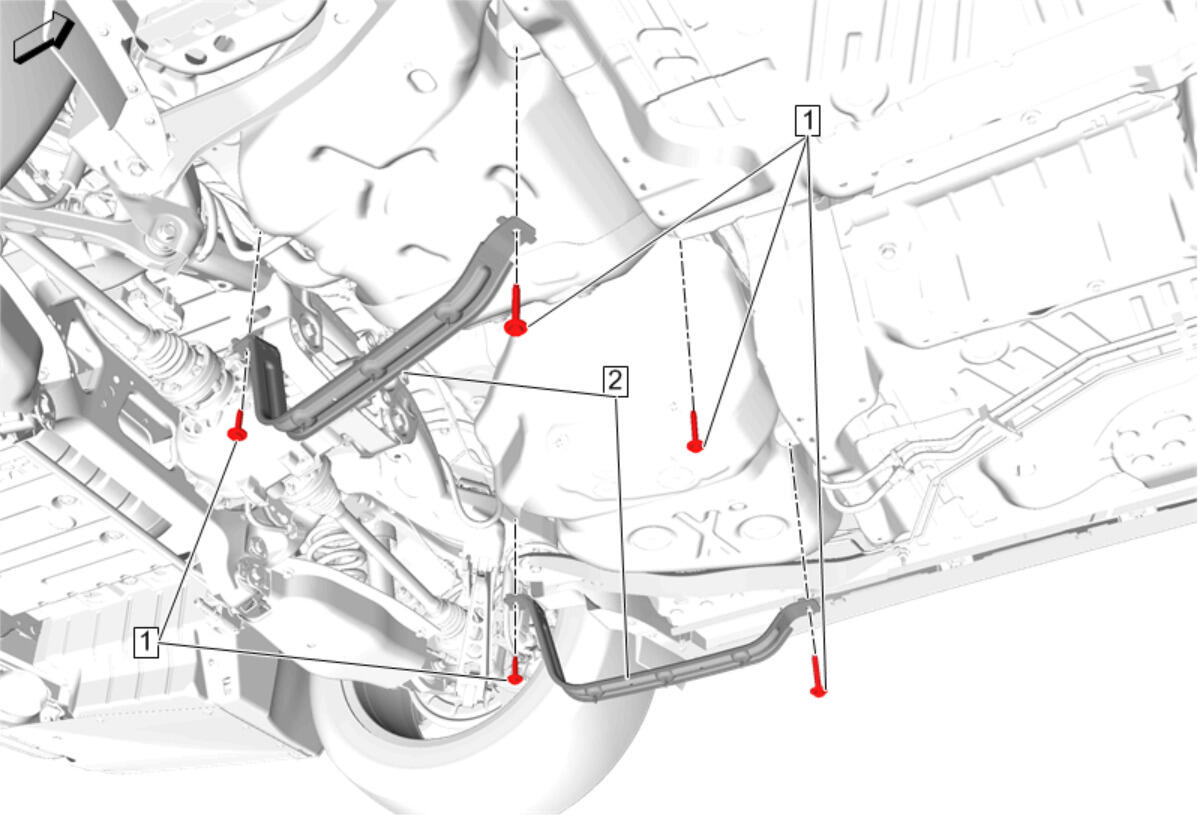

- Fuel Tank Strap Bolt (1) - Remove [5x]
- Fuel Tank Strap (2) - Remove [2x]
Fuel Tank (1) - Remove
- If replacing fuel tank transfer parts as necessary.
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
