Installation Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
Place a suitable adjustable jack under the fuel tank.

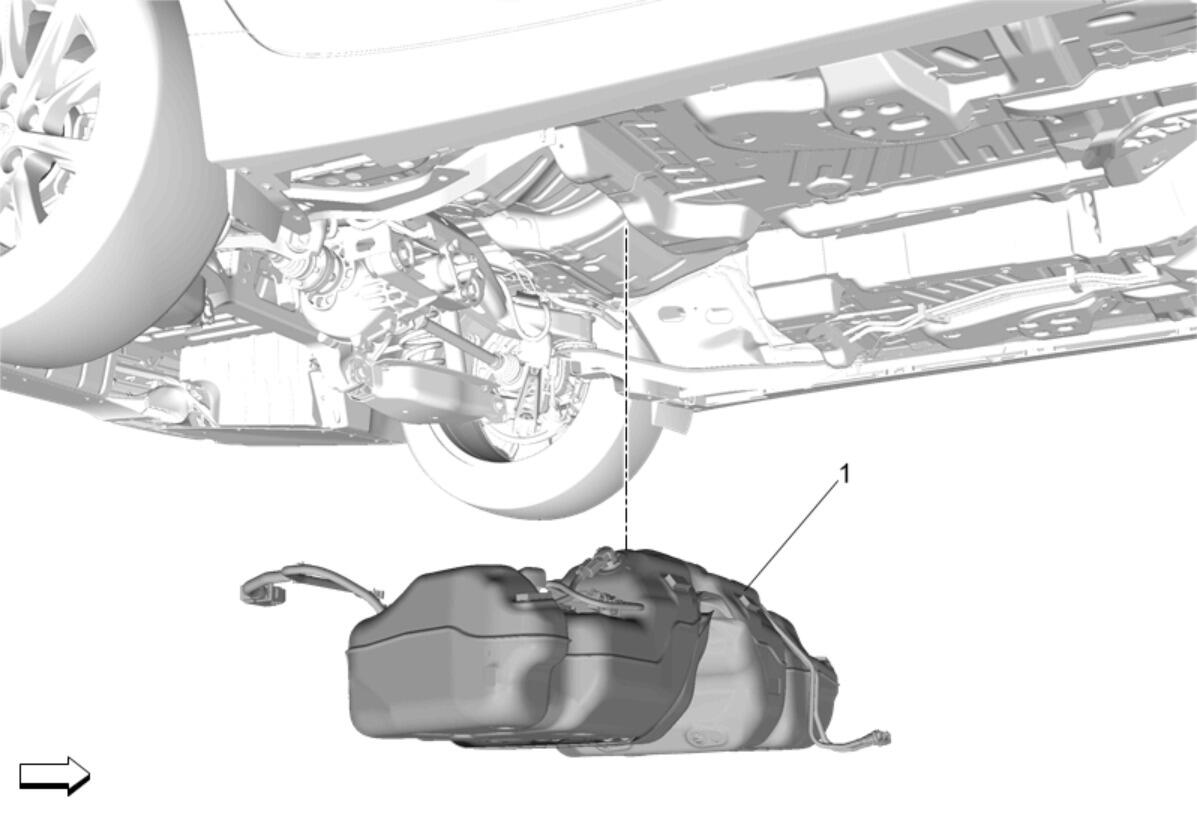

- Fuel Tank (1) - Install

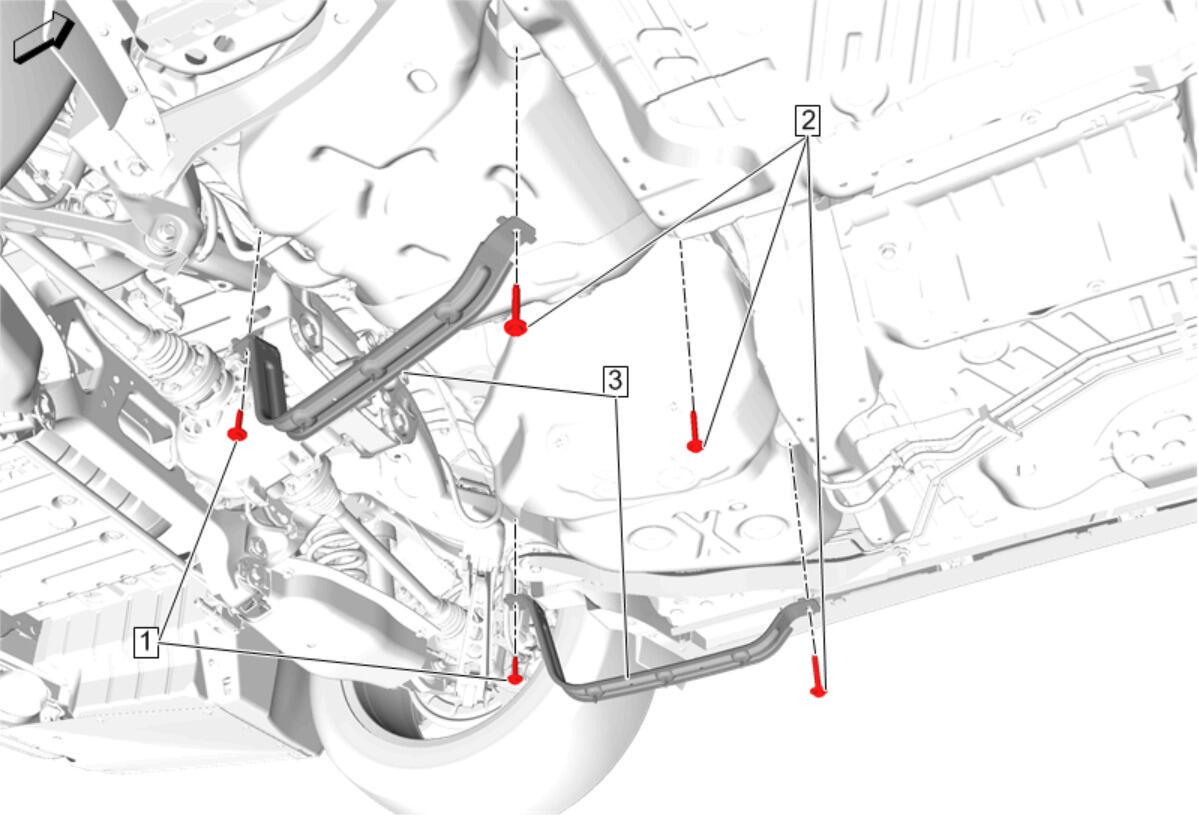

Fuel Tank Strap (3) - Install [2x]
- Fuel Tank Strap Bolt (2) - Install and tighten [3x] 22 N.m (16 lb ft)
- Fuel Tank Strap Bolt (1) - Install and tighten [2x] 27 N.m (20 lb ft)

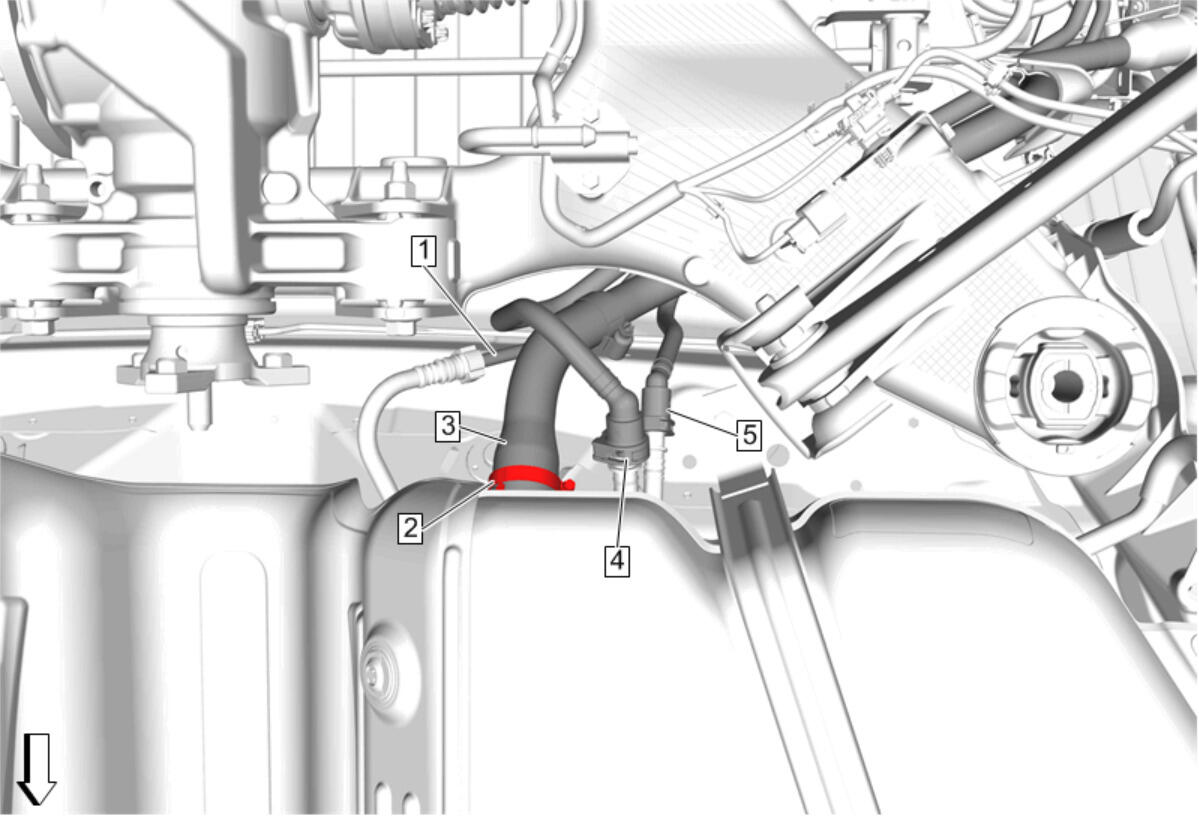

Fuel Tank Vent Hose (5) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Evaporative Emission Valve Hose (4) - Connect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Canister Purge Hose (3) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Hose (2) - Install
- Fuel Tank Filler Hose Clamp (1) - Tighten3.5 N.m (31 lb in)

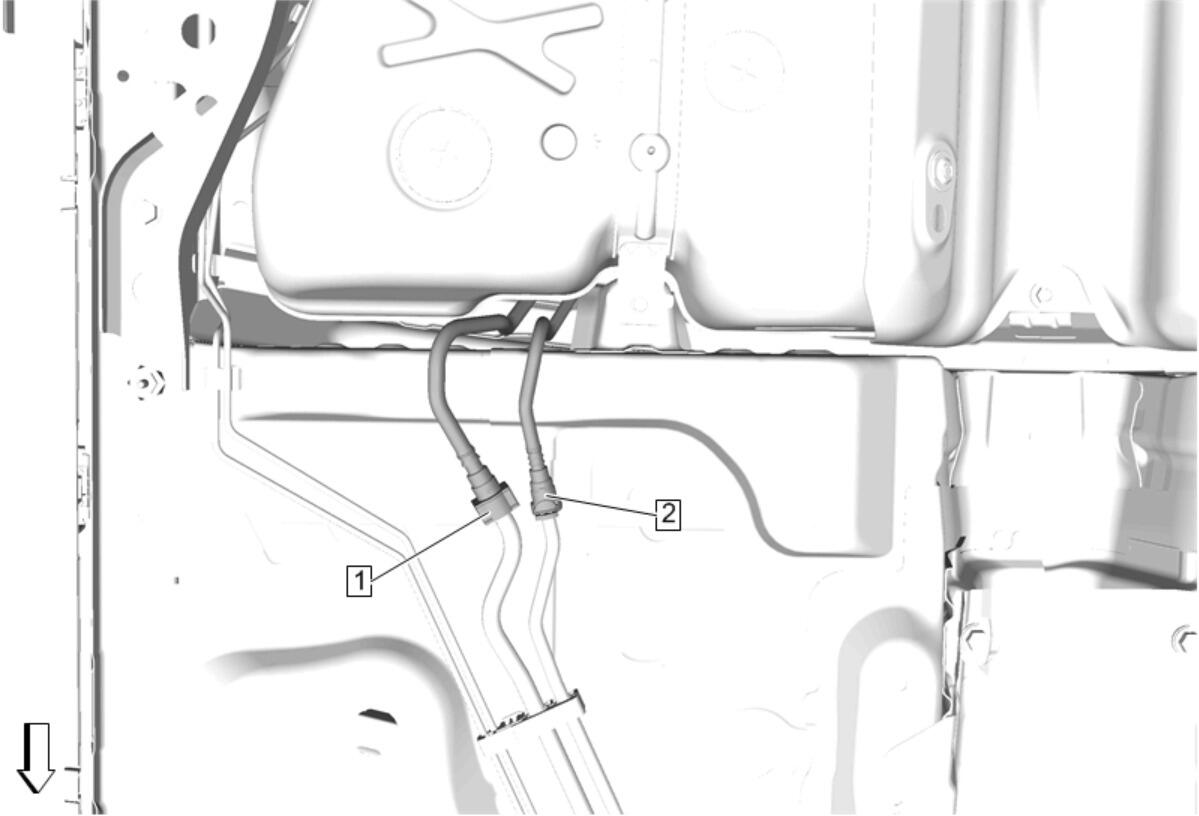

Fuel Pump Fuel Feed Hose (2) - Connect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Vent Valve Hose (1) - Connect - Plastic Collar Quick Connect Fitting Service

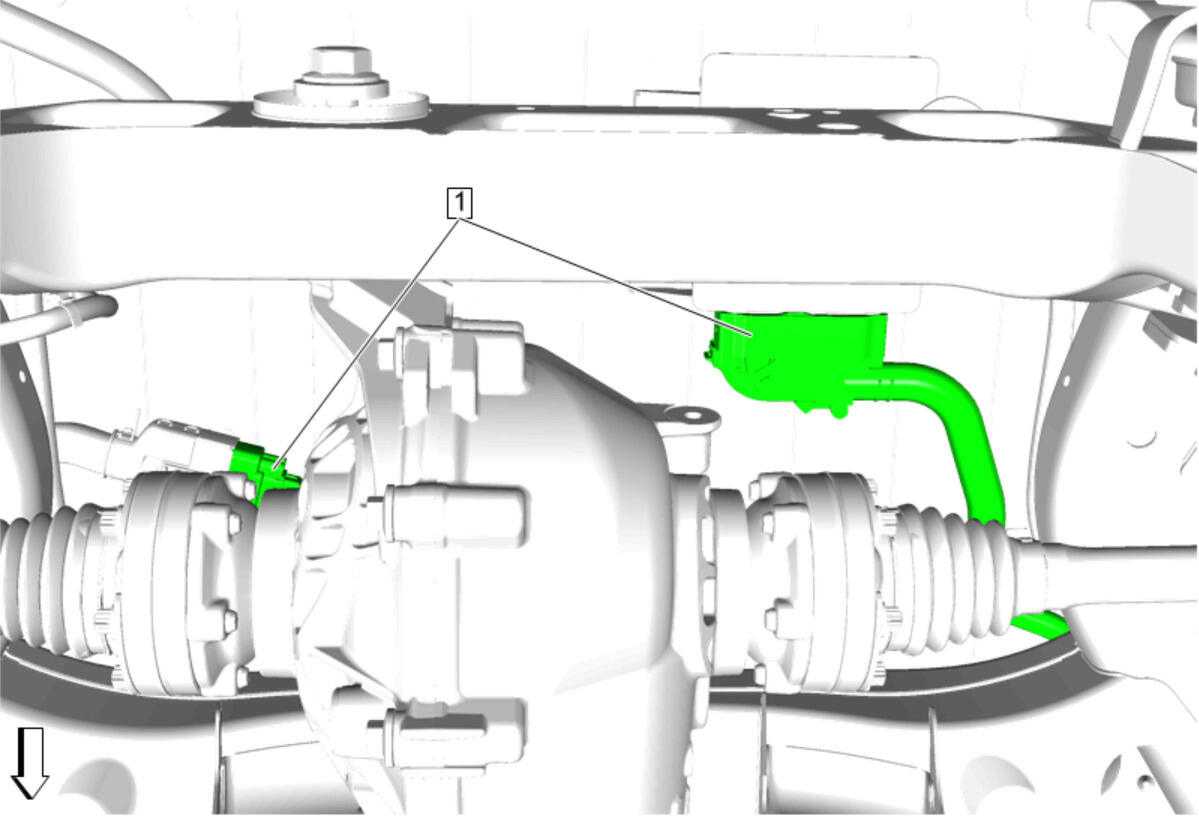

Wiring Harness Connector (1) - Connect [2x]
- Install all wiring harness retainers to vehicle.
- Propeller Shaft - Install - Propeller Shaft Replacement (AWD)
- Lower the vehicle.
- Refill the fuel tank.
- Inspect for fuel leaks.
CAUTION:
Refer to Fastener Caution .
