Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the fuel enough to remove hose. Fuel Tank Draining
- Rear Wheelhouse Liner-Right Side - Remove - Rear Wheelhouse Liner Replacement
- Fuel Tank Filler Pipe Housing - Remove - Fuel Tank Filler Pipe Housing Replacement
- Fuel Tank Vent Hose - Remove - Fuel Tank Vent Hose Replacement

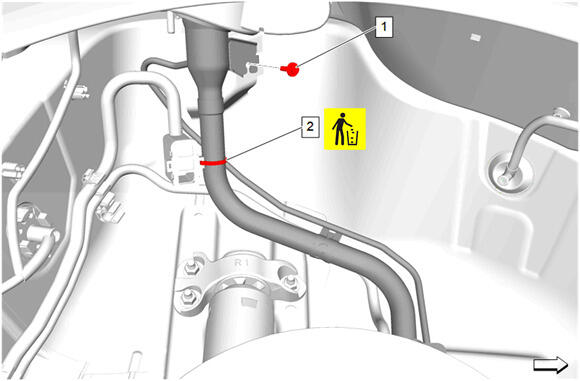

Fuel Tank Filler Pipe Ground Bolt (1) - Remove
- Tie Strap (2) - Remove and DISCARD
Fuel Tank Filler Pipe Ground Bolt (1) - Remove

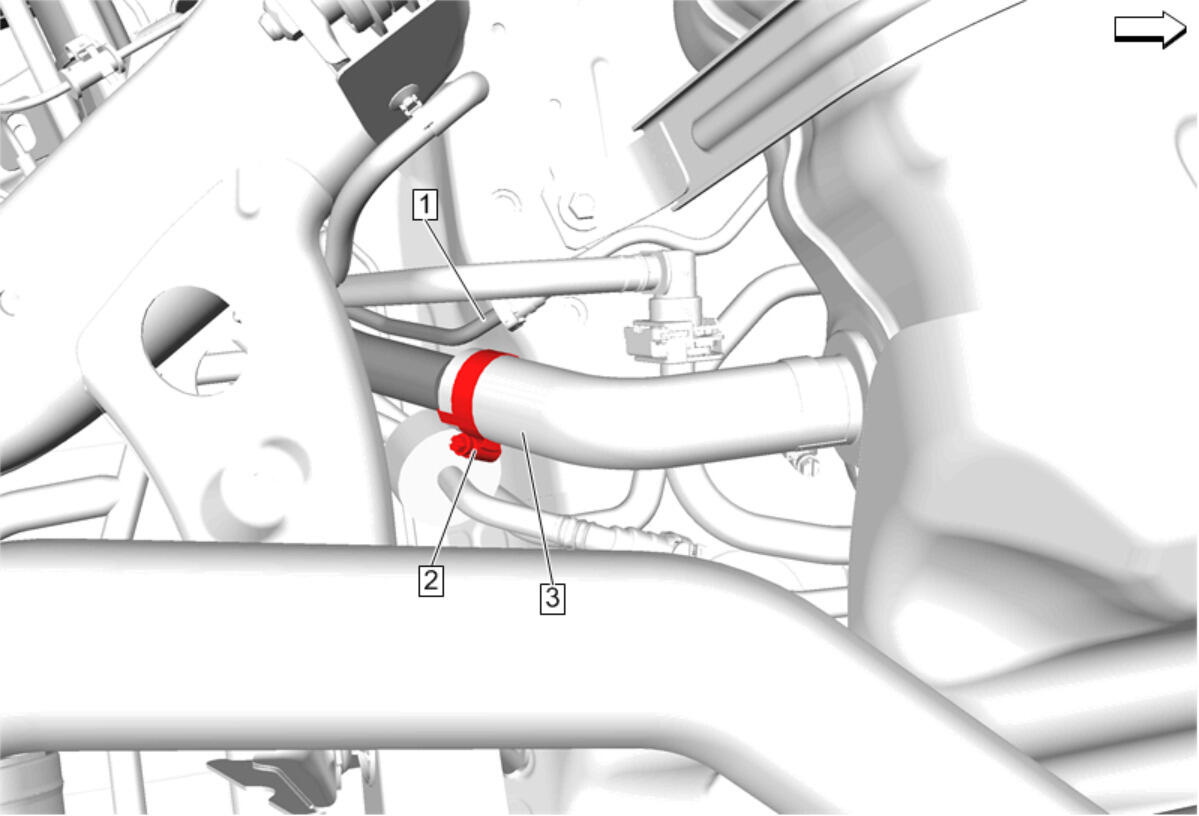

Fuel Tank Filler Pipe (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Fuel Tank Filler Hose Clamp (2) - Loosen
- Fuel Tank Filler Hose (3) - Remove

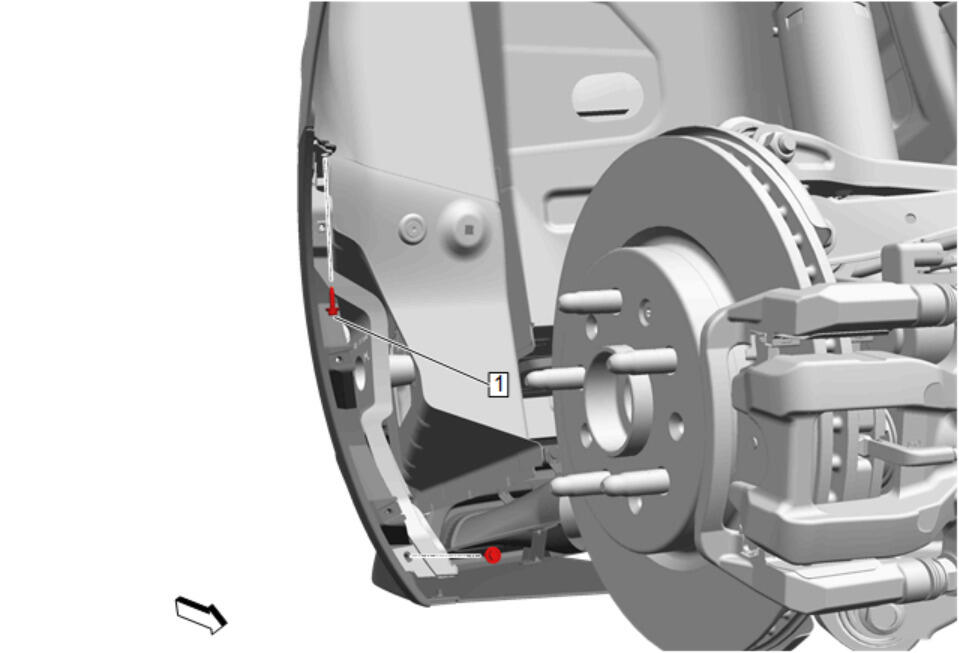

Remove the 2 right side rear fascia bolts (1).
- Gently pull fascia outward to allow for clearance for the removal of the filler pipe.

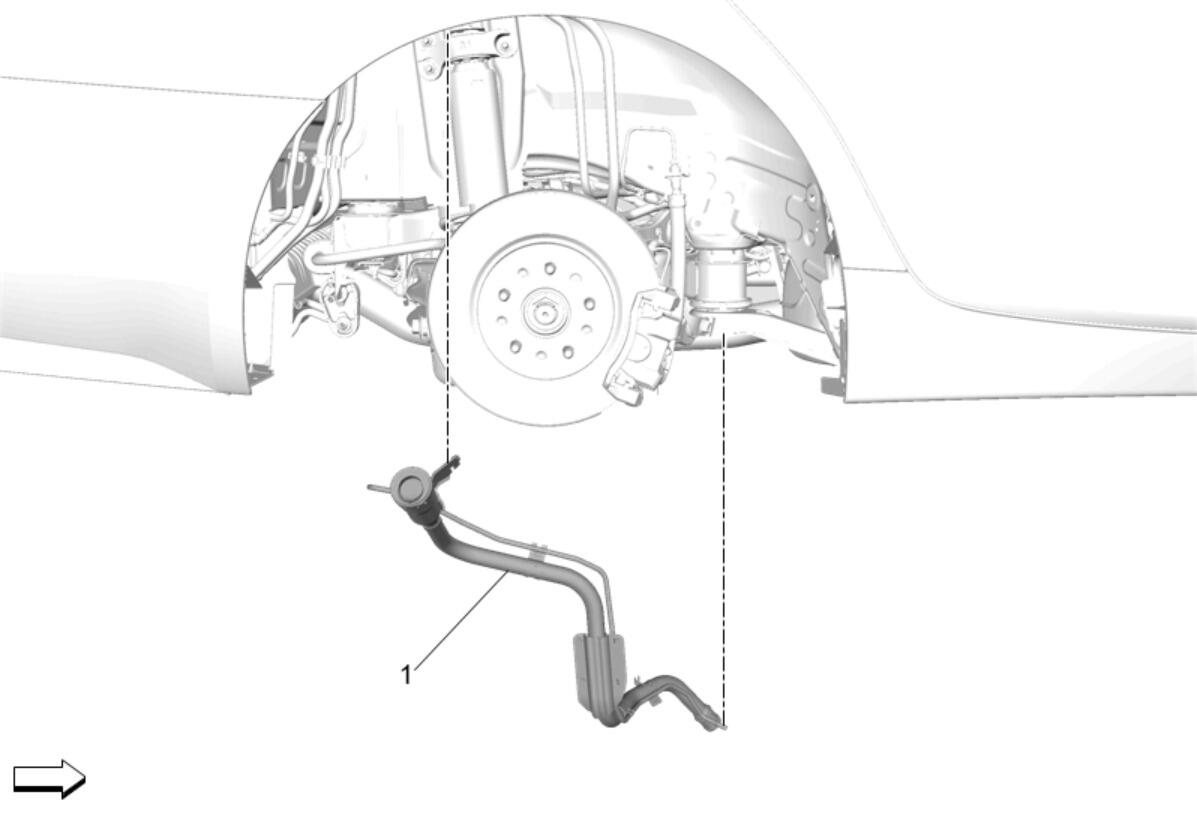

Fuel Tank Filler Pipe (1) - Remove
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
