Removal Procedure
WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
- Relieve the fuel system pressure. Fuel Pressure Relief

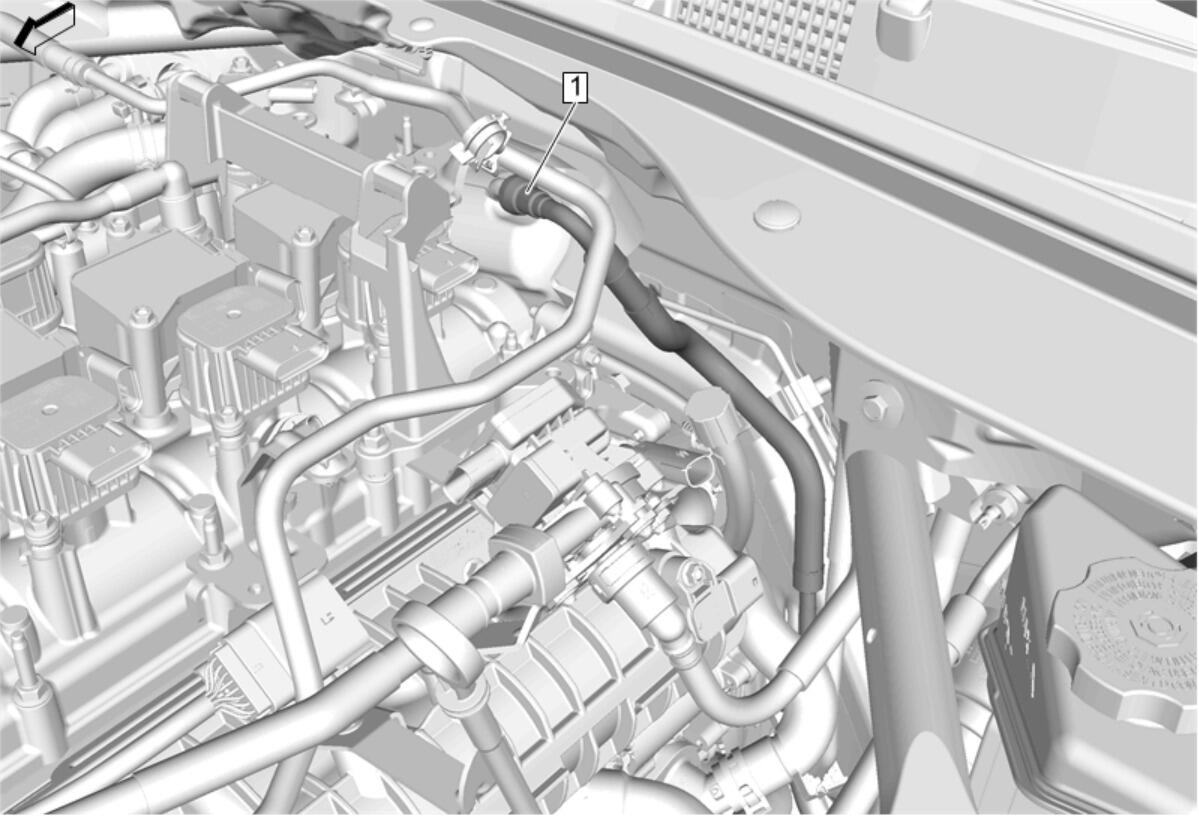

Fuel Feed Pipe (1) - Disconnect - Metal Collar Quick Connect Fitting Service
- Underbody Front Air Deflector-Left Side - Remove - Underbody Front Air Deflector Replacement - Left Side
- Exhaust Front Underbody Heat Shield-Left Side - Remove - Exhaust Front Underbody Heat Shield Replacement - Left Side

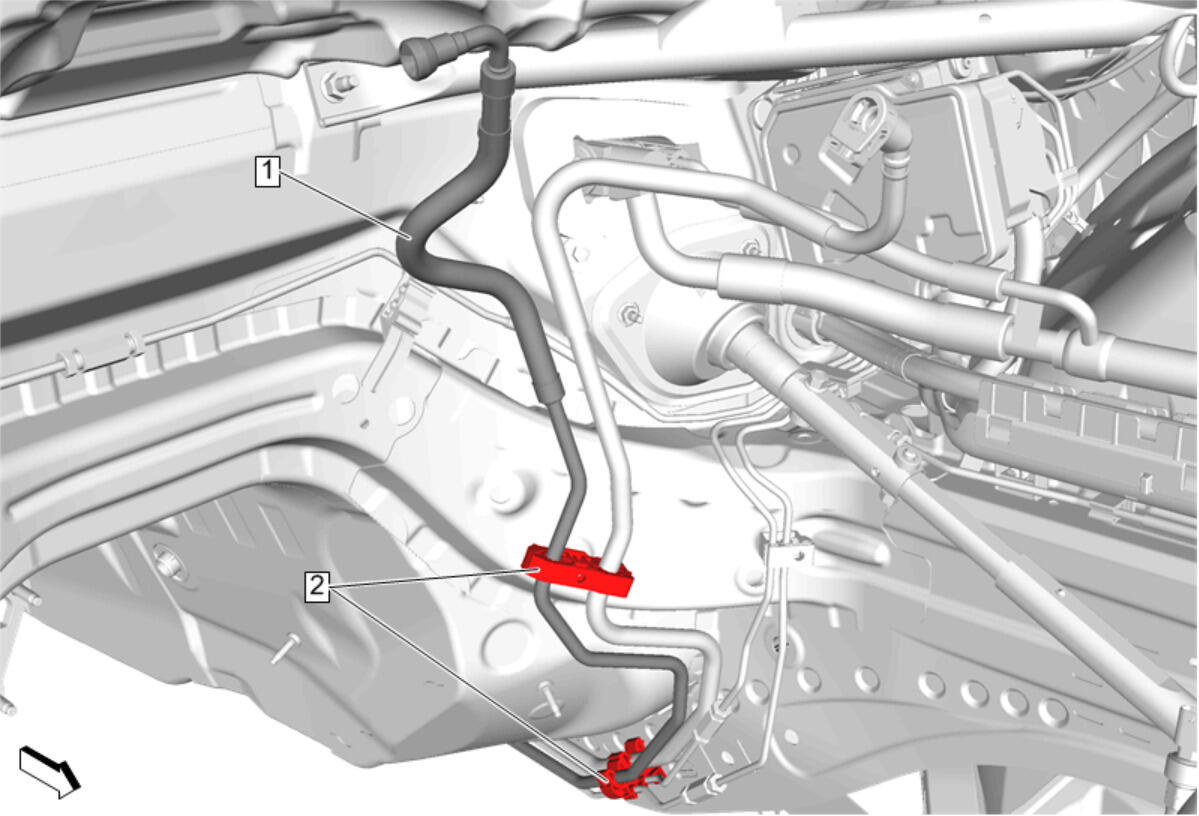

Fuel Feed Pipe (1) @Retainer (2) - Remove [2x]
Fuel Feed Pipe (1) @Fuel Pump Fuel Feed Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service

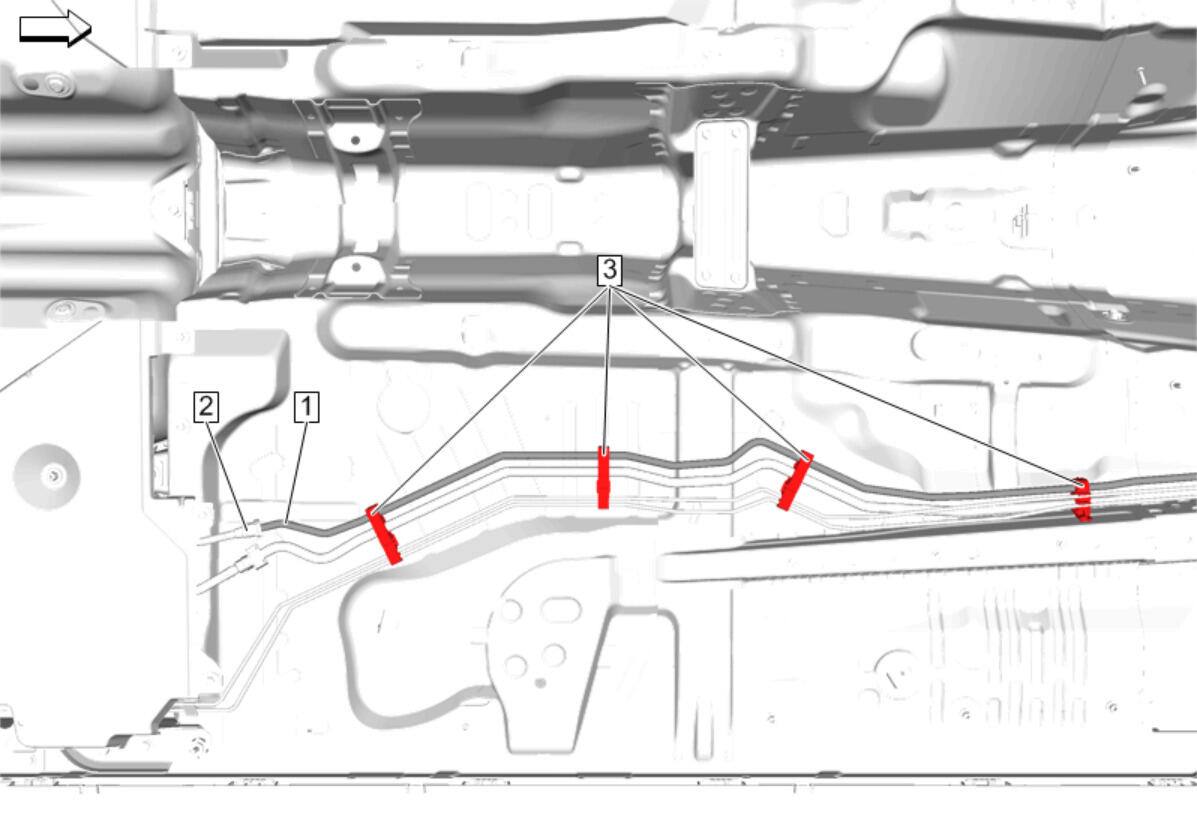

- Fuel Feed Pipe (1) @Retainer (3) - Remove [4x]
- Fuel Feed Pipe (1) - Remove
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
