Removal Procedure

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM5310568Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module (1) - Remove - Engine Control Module Replacement

  2. Remove all retainers from the engine control module bracket.

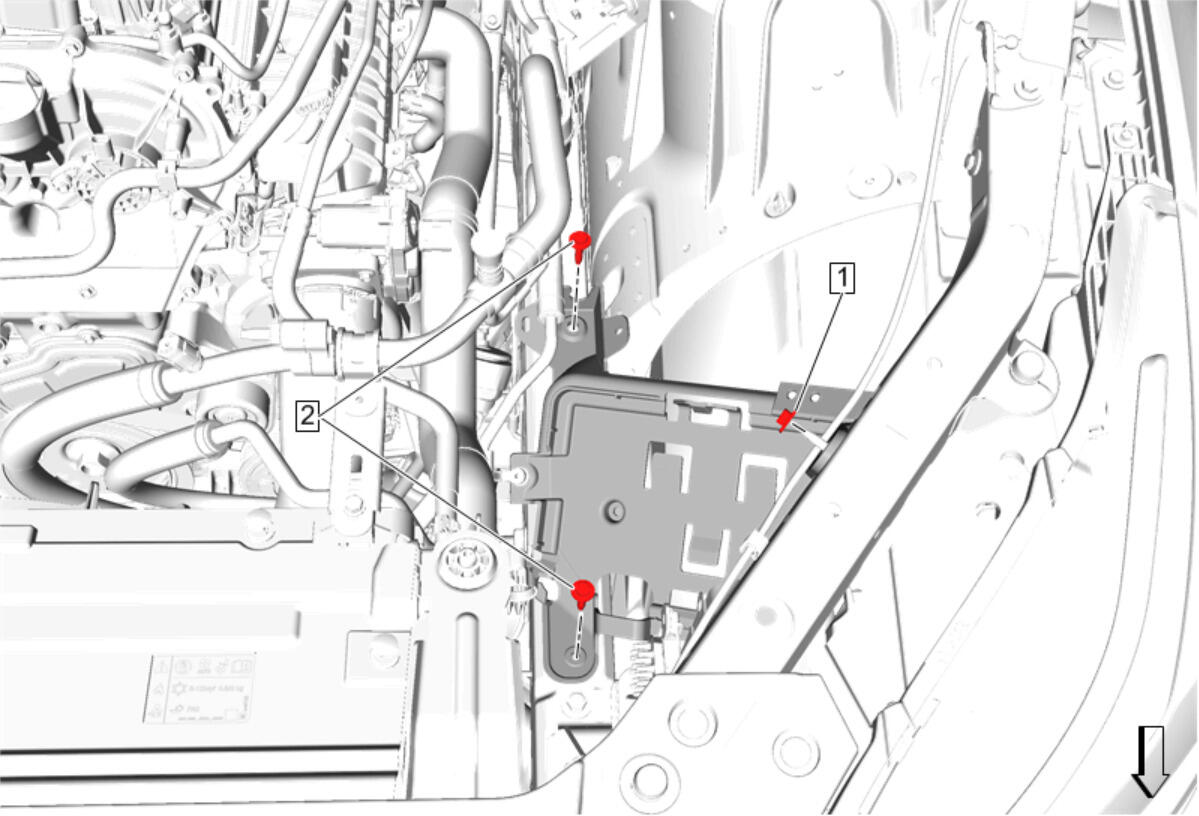

  3. GM5310571Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket Nut (1) - Remove

  4. Engine Control Module Bracket Bolt (2) - Remove [2x]
  5. GM5310572Courtesy of GENERAL MOTORS COMPANY

    Engine Control Module Bracket (1) - Remove
