Camshaft Position Actuator Valve Solenoid Replacement - Exhaust

WARNING: This page is about a different car, the 2022 Cadillac CT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

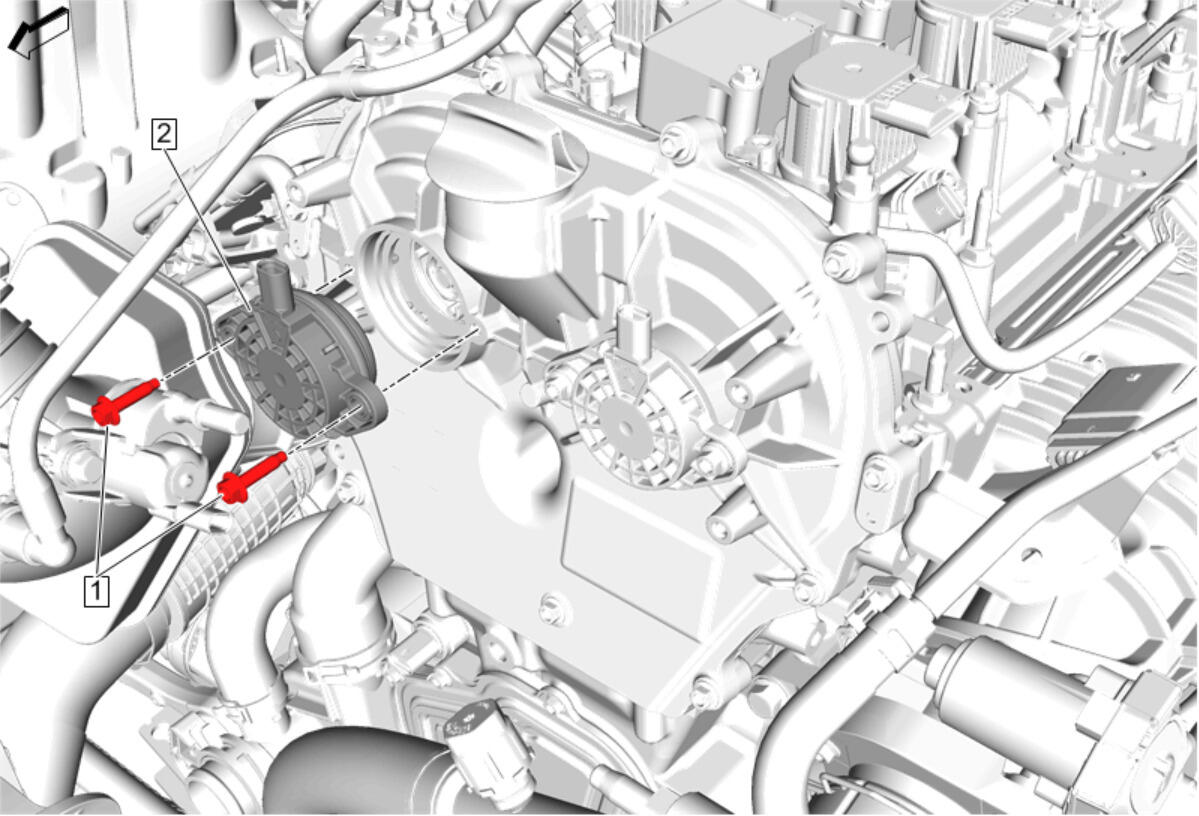

NOTE: Callouts in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Intake Manifold Cover Replacement
1	Camshaft Position Actuator Valve Solenoid Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 8.5 N.m (75 lb in)
2	Camshaft Position Actuator Valve Solenoid Procedure Disconnect the electrical connector. Install a NEW camshaft position actuator valve solenoid seal.

Callout

Component Name

Preliminary Procedure
Intake Manifold Cover Replacement

Camshaft Position Actuator Valve Solenoid Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
8.5 N.m (75 lb in)

Camshaft Position Actuator Valve Solenoid

Procedure

Disconnect the electrical connector.
Install a NEW camshaft position actuator valve solenoid seal.
